Product Description

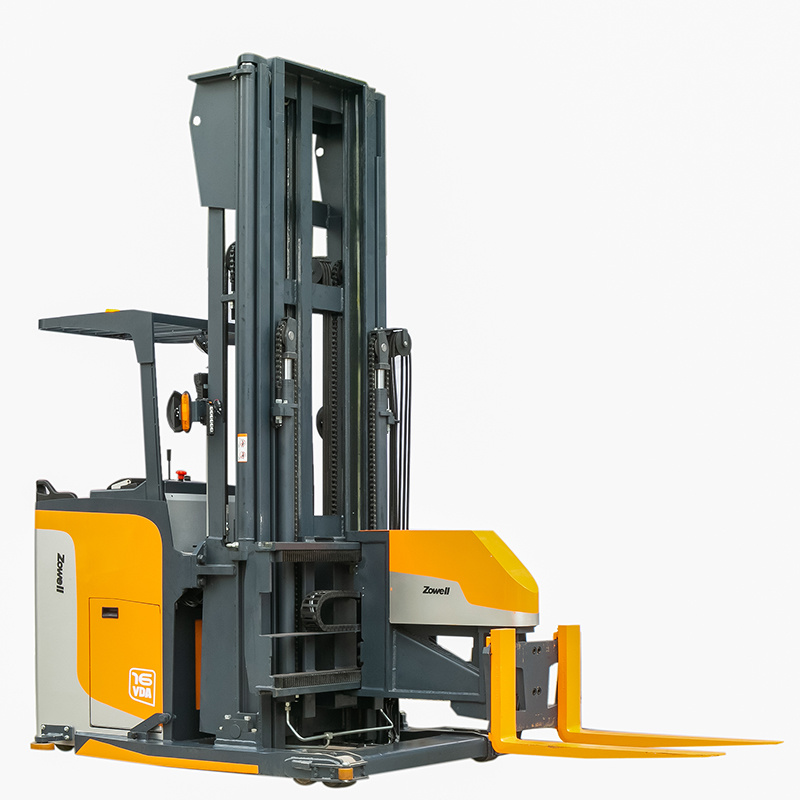

Vna Three Way Forklift 9m 1.2T

Warehouse with very narrow aisle saves much space and time than normal warehouse and has become a trend in modern storage and logistics. Counterbalanced forklifts and reach trucks are not suitable for this case for their size and turning radius. Zowell VDA 3 way forklift helps you to build a highly intergrated logistics system with high safety and turnover capacity. Equipped with fork that can be rotated left and right, the forklift does not need to turn its body in the passage, minimizing the width the aisle. Compared with reach stacker, it can save 45% of the warehouse space or more, and its maximum lifting height can reach 9m.

Detail Featurers

Safety:Standard EPS system and wheel display system. Easy and comfortable driving,
Stable performance:imported Germany mast steel channel & speed-reducer.High compressive strength keep stable mast system.

High Efficiency: The fork can rotate in 180 degree without moving forklift itself when loading and unloading goods both in left or right side.
Compared with using normal forklifts, its storeable pallets can increased by 60%.

Energy savings: Fork moving is controlled by electricity, energy-saving level can be up to 50%. Not only improve the use time but also avoid the oil-leaking problem.

Ergonomics: Both the full-surrounded panels design and the individual function layout comply with the requirements of ergonomics,which optimises operator comfort.

Technical Data

1.3	Model		VDA116-30	VDA116S-45
1.4	Power supply		Electric	Electric
1.5	Driving type		Standing on	Standing on
1.6	Rated load	Q(kg)	1600	1600
1.7	Load center	C(mm)	600	600
1.8	Wheelbase	y(mm)	1700	1700
2.1	Truck weight（Include battery）	kg	5200	5450
2.2	Battery weight（±5%）	kg	750	750
3.1	Tyres type Front wheel/Rear wheel		PU	PU
3.2	Front load wheels（Diameter×width)	mm	φ140×127	φ140×127
3.3	Rear driving wheel（Diameter×width)	mm	φ380×165	φ380×165
3.4	Tyres quantity (Drive/Load wheel/univeral wheels)	pcs	1X/4/2	1X/4/2
4.1	Lifting height	mm	3000-6000	4500-9000
4.2	Fork rotation degree	°	180	180
4.3	Lifting height	h1(mm)	见表	见表
4.4	Overhead guard height	h5(mm)	2260	2260
4.5	Platform height for standing	(mm)	355	355
4.6	Min ground clearance	h8(mm)	45	45
4.7	Overall length （fork in side position）	l1(mm)	2945	2945
4.8	Overall width（with guide wheels）	b1(mm)	1550	1550
4.9	Fork specification	l/e/s(mm)	1070/125/50	1070/125/50
4.10	Rear chassis width	b2(mm)	1190	1190
4.11	Fork width	b5(mm)	425-750	425-750
4.12	Min turning radidus(go straight)	Wa(mm)	1980	1980
4.13	Min main aisle size	（mm）	3550	3550
4.14	Min aisle width(length×width) 1200×1000	（mm）	1600	1600
5.1	Driving speed loaded/unloaded	km/h	8/9	8/9
5.2	Lifting speed loaded/unloaded	mm/s	250/300	250/300
5.3	Lowering speed Loaded/unloaded	mm/s	300/300	300/300
5.4	Gradeability, Loaded/unloaded	%(tanθ )	4	4
5.6	Brake		Regenerative	Regenerative
5.7	Park		Disc brake	Disc brake
6.2	Driving motor (S2-60min)	kw	AC 6	AC 6
6.4	Lifting motor，(S3-15%)	kw	AC 12.5	AC 12.5
6.6	Steering motor	kw	DC 0.4	DC 0.4
6.7	Battery voltage and capacity	V/Ah	48/390	48/390
8.1	Camera and monitor		Fork camera/Left side camera	Fork camera/Left side camera
