Walkie Electric Stacker Light Duty 3300mm

Walkie Electric Stacker Light Duty 3300mm

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO 9001
HS Code:	842710
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

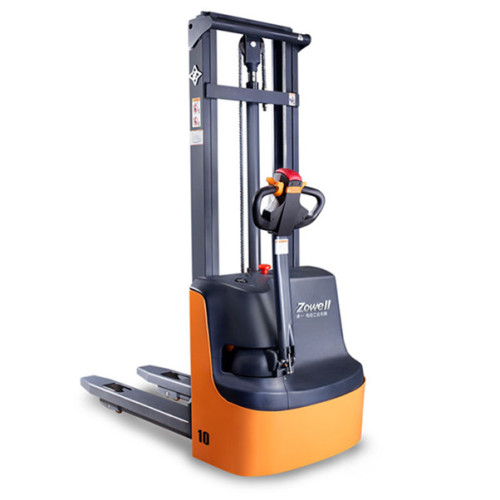

Zowell XEA model 1.2 Ton Pedestrian Type Electric Stacker is very suitable for small warehouse and confined space. Compared with Electric Counter Balance Forklift, its flexibility and energy efficiency provides great benefits to material handling with single-faced pallet. This light duty stacker also takes gel battery like Zowell 1.5 Ton Electric Pallet Truck with easy maintenance and high performance.

Special measurements for cold storage use:

A: Change the hydraulic oil for one prepared for cold storage
B: Change the gear oil for one prepared for cold storage
C: Place silicone grease on all micro switches and connectors to avoid humidity
D: Change FREI accelerator to Curtis accelerator to avoid humidity.
E: Special process on electrical components to prevent frostbite.
F: Dust the whole body.
G: Change the wheel to antiskid PU tyre.

Identification	Product model			XEA12
	Power supply			Electric
	Operating type			Pedestrian
	Load capacity		Q Kg	1200
	Load center distance		C mm	600
	Load distance		X mm	357
	Wheelbase		Y mm	1202
Weight	Weight(without battery)		Kg	530
	Axle loading,unloaded drive end / load end		Kg	400/130
Wheel	Tyres			Polyurethane
	Tyre size drive end		mm	Φ210×70
	Type size load end		mm	Φ80×70
	Balancing wheel size		mm	Φ125×60
	Wheels number (x=drive wheel) drive end/load end			1x-1/4
	Tread width drive end		mm	481
	Tread width load end		mm	400
Dimensions	Height data is on the bottom - Height data choices
	Height with mast closed		h1 mm	See Height Data Choices
	Free Lift		h2 mm
	Forks lift height		h3 mm
	Height with mast extended		h4 mm
	Forks height, lowered		h5 mm	2000
	Height of handle in drive position (Max/Min)		h6 mm	1305/1136
	Overall length		L1 mm	1756.2
	Length to face of forks		L2 mm	606.2
	Overall width		b1 mm	606.2
	Fork dimensions		s/e/l mm	160/61/1150
	Forks width		b3 mm	560
	Min. ground clearance		m mm	30
	Aisle width for pallets 800x1200 lengthways		Ast mm	2244
	Turning radius		Wa mm	1400
Performance	Travel speed loaded/unloaded		km/h	4/4.5
	Lift speed loaded/unloaded		mm/s	100/150
	Lowering speed loaded/unloaded		mm/s	130/100
	Max gradeability loaded/unloaded		%	5/8
	Service brake			Electromagnetic Brake
Electric Motor	Drive motor rating		kW	0.65
	Lift motor rating		kW	2.2
	Battery voltage / nominal capacity		V/Ah	12V/100AH
	Battery weight		Kg	N/A
Others	Type of drive control			Mosfet control
	Noise level at operator's ear		dB(A)	<70

Height Data Choices
Model	Mast type	Forks lift height		Height with mast closed	Free Lift	Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)	h4 (mm)
	Dual	2500		1750	/	2957
	Dual	3000		2000	/	3457
	Dual	3300		2150	/	3757

1.2 Ton Electric Stacker
