New Hot Sale Ce Electric Reach Stackers

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100PCS
Supply Ability:	100PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

Model NO.：XR20

Lift height：1.6m-4m

Condition：New

Operating Type：Standing

Overall Length:2290mm

Overall Width：1090mm

Forks Width：200-720mm

Fork Length：1070mm

Reach Length：580mm

Turning Radius：1756mm

Drive Motor Rating：1.2kw(DC),1.5kw(AC)

Type of Drive Control：Mosfet Control

Trademark：Zowell

Transport Package：Wooden Pallet

Specification：CE/ISO9001

Origin：Suzhou, China

HS Code：8427102000

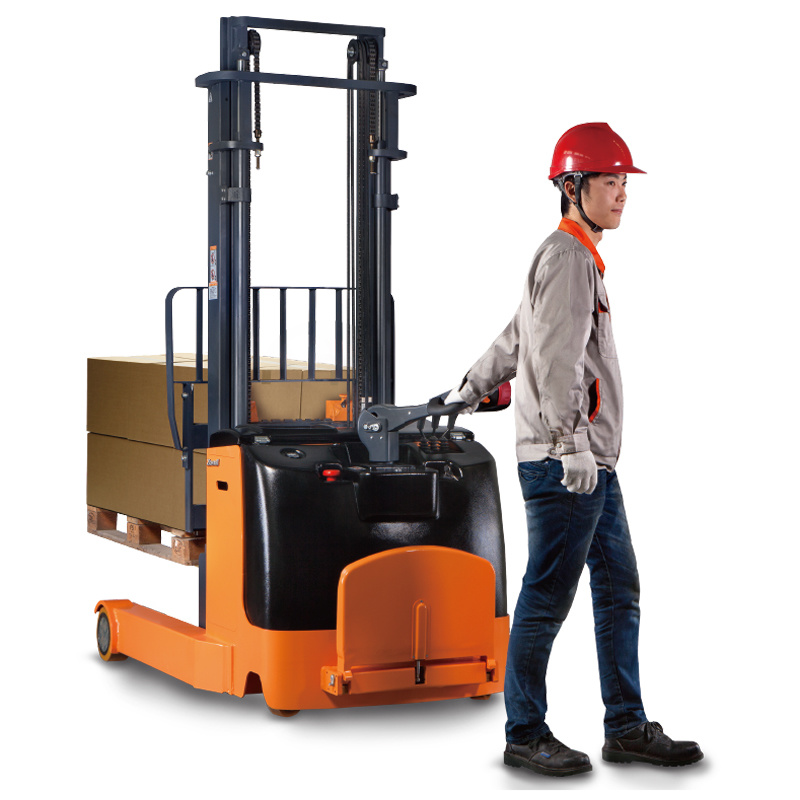

Zowell XR electric reach stacker is typically designed for stacking of medium and high intensity,which includes pallet transport and stacking in warehouse, manufacturing industries or retail stores.And its loading capacity is from 1500kgs to 2000kgs .It can work independently as well as in connection with a platform.A platform is needed for long-distance transport.

1. Imported seperately excited electric control
2. Regenerative braking function
3. Frei tiller, original device of Germany
4. Sideways battery exit
5. Widen mast views.
6. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.
7. Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.
8.Emergency reversing device in the handle provides improved operating safety.
9.Emergency power disconnect switch.
10.Braking applied with handle upright and horizontal position, increasing the safety of the truck.
11.Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

Identification	Product model			XR15		XR20
	Power supply			Electric
	Operating type			Standing
	Load capacity		Q Kg	1500		2000
	Load center distance		C mm	500
	Load distance		X mm	446		646
	Wheelbase		Y mm	1390		1590
Weight	Weight (without battery)		Kg	1700		1780
	Axle loading, loaded drive end / load end		Kg	1338/2112		1520/2230
	Axle loading, unloaded drive end / load end		Kg	1372/578		1542/612
Wheel	Tyres			Polyurethane
	Tyre size drive end		mm	Φ230x75
	Type size load end		mm	Φ210x85
	Balancing wheel size		mm	Φ125x60
	Wheels number (x=drive wheel) drive end/load end			1x-2/2
	Tread width drive end		mm	740
	Tread width load end		mm	985
Dimensions	Height data is on the bottom - Height data choices
	Forks height,lowered		h5 mm	35
	Height of handle in drive position (Max/Min)		h6 mm	1380/1020
	Overall length		L1 mm	2090		2290
	Length to face of forks		L2 mm	1185
	Overall width		b1 mm	1090
	Fork dimensions (Forging)		s/e/l mm	100/35/1070
	Forks width		b3 mm	200-720
	Reach length		L3 mm	580
	Minimum ground clearance		m mm	55
	Aisle width for pallets 1000x1200 lengthways		Ast mm	2410		2610
	Aisle width for pallets 800x1200 lengthways		Ast mm	2610		2810
	Turning radius		Wa mm	1656		1756
	Inside width between the guides		b4 mm	780
Performance	Travel speed loaded/unloaded		km/h	4.8/5.6
	Lift speed loaded/unloaded		mm/s	90/120
	Lowering speed loaded/unloaded		mm/s	125/80
	Max gradeability loaded/unloaded		%	5/8
	Service brake			Electromagnetic
Electric Motor	Drive motor rating		kW	1.2(DC),1.5(AC)
	Lift motor rating		kW	2.2/3.0
	Battery voltage / nominal capacity		V/Ah	24/240-280
	Battery weight		Kg	250(280)
Others	Type of drive control			MOSFET Control
	Noise level at operator's ear		dB(A)	<70

Height Data Choices
	Mast type	Lift		Height with mast closed	Free Lift		Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)		h4 (mm)
	Single	1600		2030	1000		2540
	Dual	2500		1780	90		3440
	Dual	3000		2030	90		3940
	Dual	3500		2280	90		4440
	Dual	4000		2590	90		4940
	Triple	4500		2060	1500		5340
	Triple	4800		2160	1600		5640
	Triple	5000		2230	1660		5840
	Triple	5500		2400	1820		6340
