Zowell CE Electric Reach Stacker Xr1.5ton loading

Zowell CE Electric Reach Stacker Xr1.5ton loading

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

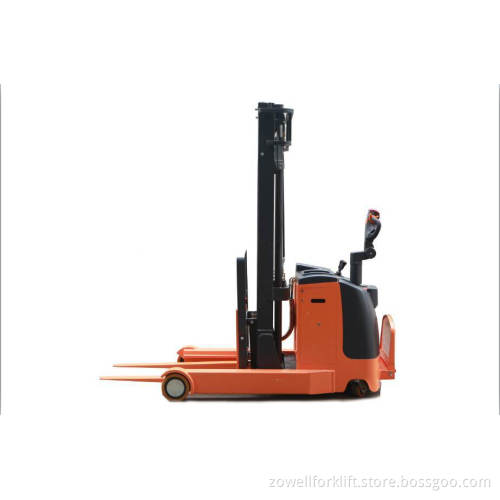

Zowell 1.5 Ton Electric Reach Stacker is a stacking equipment with stable performance and easy operation. Differs from Electric Stacker, XR series Electric Reach Truck is equipped with a reach mast can be extended to 580mm. With fork reach and tilt, the equipment can help you handling materials easier.

Model NO.：XR15

Condition：New

Capacity：1001kg-5000kg

Operating Type：Standing

Tyre Size Drive End：230X75

Type Size Load End：210X85

Balancing Wheel Size：125X60

Overall Length：2090mm

Reach Length：580mm

Turning Radius：1656mm

Forks Width：200-720mm

Trademark：Zowell

Specification：CE

Origin：Suzhou, China

HS Code：8427102000



Identification	Product model		XR15	XR20
	Power supply		Electric
	Operating type		Standing
	Load capacity	Q Kg	1500	2000
	Load center distance	C mm	500
	Load distance	X mm	446	646
	Wheelbase	Y mm	1440	1590
Weight	Weight (without battery)	Kg	1700	1716
	Axle loading, loaded drive end / load end	Kg	1338/2112	1520/2230
	Axle loading, unloaded drive end / load end	Kg	1372/578	1542/612
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ230x75
	Type size load end	mm	Φ210x85
	Balancing wheel size	mm	Φ125x60
	Wheels number (x=drive wheel) drive end/load end		1x-2/2
	Tread width drive end	mm	740
	Tread width load end	mm	985
Dimensions	Height data is on the bottom - Height data choices
	Forks height,lowered	h5 mm	35
	Height of handle in drive position (Max/Min)	h6 mm	1380/1020
	Overall length	L1 mm	2325	2475
	Length to face of forks	L2 mm	1185
	Overall width	b1 mm	1090
	Fork dimensions (Forging)	s/e/l mm	100/35/1070
	Forks width	b3 mm	200-730
	Reach length	L3 mm	580
	Minimum ground clearance	m mm	55
	Aisle width for pallets 1000x1200 lengthways	Ast mm	2742	2892
	Aisle width for pallets 800x1200 lengthways	Ast mm	2780	2930
	Turning radius	Wa mm	1725	1874
	Inside width between the guides	b4 mm	780
Performance	Travel speed loaded/unloaded	km/h	4.8/5.6
	Lift speed loaded/unloaded	mm/s	90/120
	Lowering speed loaded/unloaded	mm/s	125/80
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.2(DC),1.5(AC)
	Lift motor rating	kW	2.2/3.0
	Battery voltage / nominal capacity	V/Ah	24/240-280
	Battery weight	Kg	240(262)
Others	Type of drive control		MOSFET Control
	Noise level at operator's ear	dB(A)	<70

Zowell CE Electric Reach Stacker Xr (1.5ton loading, 1.6m-5m lifting) Can Be Customized
