Titanium Welded Tube |Gr1/Gr5 Welding Exhaust Pipes
-
$20.00≥100 Kilogram
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Transportation:
- Ocean, Air
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 80 ton/month |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| HS Code: | 81089040 |
| Transportation: | Ocean,Air |
| Port: | shanghai |
Product Details
1.Product Introduction of titanium welded tube
Titanium welded pipe, also known as welded titanium pipe, is made of titanium or titanium after welding through the formation of pipe. Welded pipe production technology is simple, high production efficiency, varieties and specifications, equipment investment is less, but the general strength is lower than seamless titanium pipe. We supply Titanium welded tube with standard ASTM B862 and ASTM 4942, the titanium tube can be widely used for chemical industry and seawater desalination application etc.
We supply type: Titanium tube of round tube, square tube, coiling tube, more over, we could customize the titanium tube according to our clients’ request.
2. Materials and standard of titanium welded tube
|
Item |
Titanium & Titanium alloy tube |
||
| Standard | ASTM B862, ASTM B337, ASTM B338 and ASTM 4942 | ||
|
Condition |
(M) |
||
|
Shape |
Round, square, coiling |
||
|
Specification |
Outside diameter: 19mm Thickness: 0.5mm~ 0.7mm |
Length:1000~15000mm |
|
|
Outside diameter: 25.4mm Thickness: 0.5mm~ 0.7mm |
Length:1000~15000mm |
||
|
It can be customized according to our clients’ requirement |
|||
|
Material |
Pure titanium |
Gr.1,Gr.2 |
|
|
Alloy titanium |
Gr.5(Ti-6Al4V), Gr.7(Ti-0.2Pd), Gr.9(Ti-3Al2.5V), Gr.12(Ti-0.3Mo-0.8Ni) |
||
|
Surface |
Pickling or Bright |
||
|
Processing technology |
Hot forging, hot rolled, cold rolled |
||

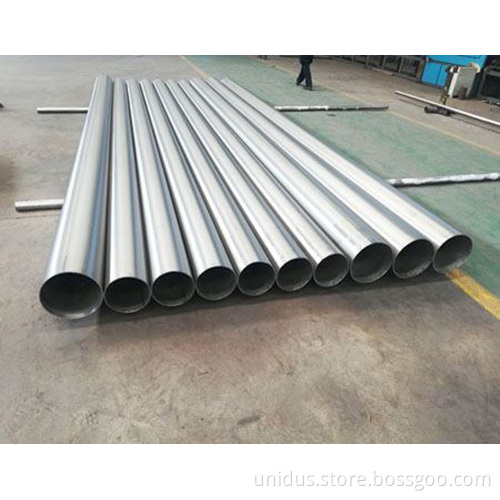

3. Titanium welded tube show
4.Features of titanium welded tube
The straight welded pipe production technology is simple, the production efficiency is high, the cost is low, and the development is faster. The strength of spiral welded pipe is generally higher than that of longitudinal welded pipe. The welded pipe with larger diameter can be produced with narrower billet, and the welded pipe with different diameters can be produced with the same width of billet.
5..titanium welded tube process
The raw materials - Flat - end uncoiling shearing and welding - Welding - - loop forming - both inside and outside the weld bead removal pre correction - induction heat treatment, sizing and alignment: eddy current testing - cut - pressure check final inspection, packing, pickling and shipment.
6. Application of titanium welded tube
Products are widely used in water engineering, petrochemical industry, chemical industry, power industry, agricultural irrigation and urban construction
For liquid transportation: water supply and drainage.
For gas delivery: gas, steam, liquefied petroleum gas.
For structural purposes: used as piling pipes, bridges, piers, roads, building structures, pipes, etc.
7. Delivery
We can deliver the products ( titanium tube) according to the stock situation, usually the small quantity is available. The best delivery time depends on the quantity you demanded.
