ASTM B338 Titanium Gr5 Seamless Tube
-
$20.00≥100 Kilogram
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Transportation:
- Ocean, Air
- Port:
- shanghai, The delivery port 2, The delivery port 3
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | The delivery port |
| Supply Ability: | 80 ton/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| HS Code: | 81089040 |
| Transportation: | Ocean,Air |
| Port: | shanghai,The delivery port 2,The delivery port 3 |
Product Details

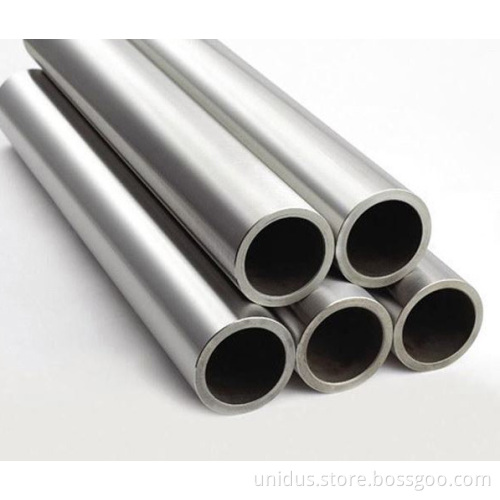

ASTM B338 Titanium Gr5 Seamless Tube
Material and Standard:
|
Material |
Gr1, Gr2, Gr5, Gr7, Gr9, Gr23, |
|
Standard |
ASTM B337.ASTM B338,ASTM B861,ASTM B862 |
Description:
1. Titanium tubes manufactured to ASTM B338/ ASME SB-338 are widely applied for the fabrication of tubular heat exchangers.
2. The tubular heat exchanger mainly covers double-pipe heat exchanger, shell and tube heat exchanger, and coiled tube heat exchanger.
3. Titanium Gr5 Seamless tubes have high corrosion resistance in addition to high strength to weight ratio.
Details
|
Seamless Tube Length |
Weld-Rolling Tube Length |
|
|
|
|
|
Classification |
OD≥15 |
OD>15 |
Wall Thickness |
|
|
|
WT≥2.0 |
WT>2.0-4.5 |
0.5-0.8 |
>0.8-2.0 |
|
|
|
Length(mm) |
500-4000 |
500-9000 |
500-6000 |
500-8000 |
500-5000 |
|
Welded Tube Length |
|
|
|
|
Classification |
WT0.5-1.25 |
WT>1.25-2.0 |
WT>2.0-4.5 |
|
Length(mm) |
500-6000 |
500-6000 |
500-15000 |
|
Grade |
Technique |
Specification(mm) |
Standard |
Condition |
|
Gr1 Gr2 Gr5 Gr7 Gr9 Gr23 |
Cold rolled Hot rolled |
φ3-114x1.0-4.5x2000-15000 >φ110x1.0-8.0x1000-15000 |
ASTM B337 ASTM B338 ASTM B861 ASTM B862 AMS 4942 |
Annealed |
|
Hot forging |
>φ15x>5.0x<1000 |
|
|
|
Application and usage standards
1. Titanium tubes are widely used in shell and plate heat Exchangers, one is U- tube Heat exchangers, another is straight tube heat exchangers.
2. Controlling by TEMA, corrosion allowances, testing requirement min. thickness, to design and manufacture efficient solutions are arrived at.
3. U-Tube Heat exchangers make use of U-shaped tubes fixed, while the straight tubes are getting supported through a set of straight tubes.
