ASTM B348 Titanium Round Bars

$20.00

≥100 Kilogram

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 100 Kilogram

Min. Order:: 100 Kilogram

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	80 ton/month
Supply Ability:	80 ton/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
HS Code:	81089040
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

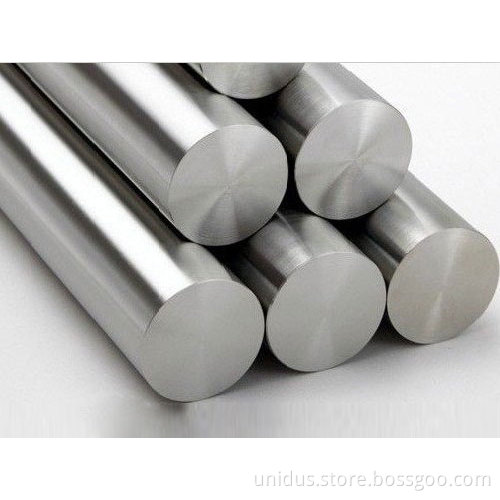

ASTM B348 titanium round rod

ASTM B348 Standard Specification for Titanium and Titanium Alloy Bars and Blanks.Due to their high strength and lightweight properties, they are used in a wide range of components in high-temperature environments, including aircraft equipment, the petrochemical and chemical industries.

standard

ASTM B348，ASME SB348，ASTM B381，ASME SB381ELI，ASTM F136，ASTM F67，AMS 4928，AMS 4965，ISO 5832-2，ISO 5832-3

performance

Non-alloy titanium:

Grades 1, 2, 3, 7, 11 (CP Ti-0.15PD), 16, 17, 26, 27

Titanium base alloy:

Grade 5 (Ti-6Al-4V), Grade 9 (Ti 3Al-2.5V), Grade 12 (Ti-0.3-Mo-0.8Ni), Grade 19 (Ti Beta C), Grade 23 (Ti 6Al-4V ELI), Grade 28

Supply grade: GR1, GR2, GR5, GR12

Common Grade ASTM B348 Chemical Composition:

class	titanium	maximum temperature	The largest N	the highest	aluminum	volt	maximum	Ni
1号	remind	0.08	0.03	0.015	/	/	0.18	/
2号	remind	0.05	0.03	0.015	/	/	0.25	/
5号	remind	0.10	0.05	0.015	5.5〜6.75	3.5〜4.5	0.20	/
12号	remind	0.08	0.03	0.015	/	/	0.25	0.6-0.9

Common Grade ASTM B348 Mechanical Properties (%) :

class	Minimum tensile strength （N / mm2）	yield strength mm（N / mm2）	elongation 4D min	Minimized area reduction
1号	240	138	24	30
2号	345	275	20	30
5号	895	828	10	25
12号	483	345	18岁	25
