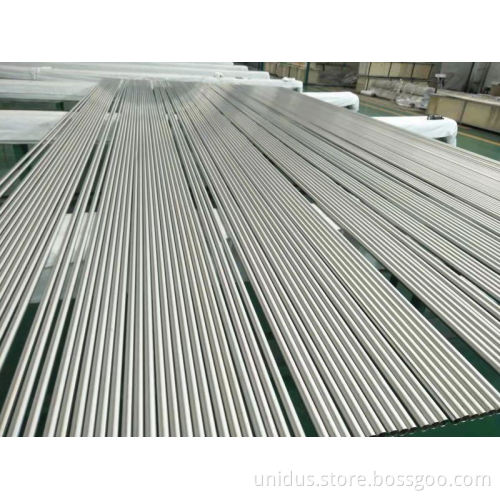

ASTM B338 Grade 2 Seamless Titanium Tube
-
USD20≥100 Kilogram
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100 Kilogram
- Min. Order:
- 100 Kilogram
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 80 ton/month |
| Supply Ability: | 80 ton/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| HS Code: | 81089040 |
| Transportation: | Ocean,Air |
| Port: | Shanghai |
ASTM B338. Gr2 titanium seamless tube has moderate strength and good cold forming characteristics, with good welding properties and anti corrosion . It is widely used in heat exchanger, condenser, water treatment, desalination, evaporator and pipelines etc.Both straight titanium tube and bending titanium tubing are available.
Grade 2: Excellent formability and superior corrosion resistance.
Grade 2 is slightly stronger than Ti Grade 1, makes it an ideal material for a large variety of chemical and marine application. Grade 2 has a higher oxygen content than Grade 1. Widely used as it combines resistance, weld ability and formability.
Grades Comparison Table
| Grade | UNS | ASTM/ASME | W.Nr. | AFNOR |
|---|---|---|---|---|
| CP 1 Titanium | R50250 | Grade 1 | W.Nr. 3.7025 | T-35 |
| CP 2 Titanium | R50400 | Grade 2 | W.Nr. 3.7035 | T-40 |
| CP 3 Titanium | R50550 | Grade 3 | W.Nr. 3.7055 | T-50 |
| High Pd Titanium | R52400 | Grade 7 | W.Nr. 3.7235 | - |
| High Pd Titanium | R52250 | Grade 11 | W.Nr. 3.7225 | - |
| Titanium-Mo-Ni | R53400 | Grade 12 | W.Nr. 3.7105 | - |
| Low Pd Titanium | R52402 | Grade 16 | - | - |
| Low Pd Titanium | R52252 | Grade 17 | - |
- |
Mechanical Properties
| Titanium grade | UNS |
Proof strength Rp0.2 MPa min |
Tensile strength Rm MPa min |
Elongation A % min |
|---|---|---|---|---|
| Cp Ti Grade 1 | R50250 | 138-310 | 240 | 24 |
| Cp Ti Grade 2 | R50400 | 275-450 | 345 | 20 |
| Cp Ti Grade 3 | R50550 | 380-550 | 450 | 18 |
| Ti Grade 7 | R52400 | 275-450 | 345 | 20 |
| Ti Grade 11 | R52250 | 138-310 | 240 | 24 |
| Ti Grade 12 | R53400 | 345 | 483 | 18 |
| Ti Grade 16 | R52402 | 275-450 | 345 | 20 |
| Ti Grade 17 | R52252 | 138-310 | 240 | 24 |
Specifications
Standard: ASTM B338, ASTM B861
Grade: CP1, CP2, CP3, GR7, GR11, GR12, GR16, GR17
Outer diameter Range: 6mm ~ 250mm
Thickness Range: 0.5mm ~ 20mm
Length: Not exceed 15 Meters
Condition: Full Annealed
Tolerance Control: OD ±0.1mm, Avg Thickness: ±10% Min Thickness: +10%/-0
Extra Service: Cutting, Machining, Polishing, Bending
Quality Control
We use the Class A raw material to guarantee our titanium tubes quality. Shaving and boring to control the surface. NDT test (Hydrostatic, Pneumatic, E.T. U.T) to make sure each tube without crack and defect.
As a leading CP seamless titanium tube manufacturer, Unidus Titanium adheres to strict quality standards to produce titanium tube. We guarantee our tube meet our customer's special requirement.Below normal testing for titanium seamless tube:
|
Chemical Composition |
Ultrasonic Test |
Elongation |
|
|
Visual Inspection |
Eddy current test |
Flattening |
|
|
Pneumatic test |
Hydrostatic test |
Flaring |
|
|
Dimensional Inspection |
Tensile and Yield |
Hardness |
