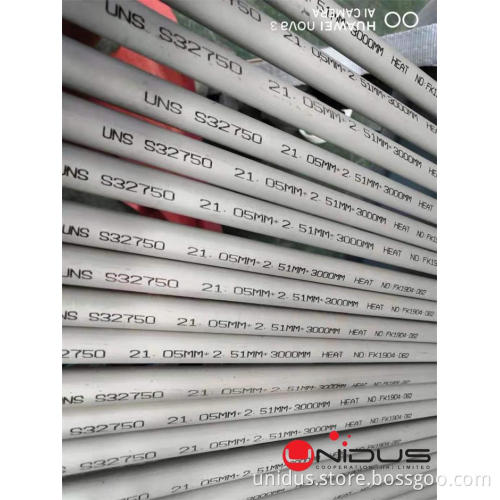

S32750 Duplex Stainless Steel Tube
-
USD1000≥1 Ton
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Ton
- Min. Order:
- 1 Ton
- Delivery Time:
- 45 Days
- Transportation:
- Ocean, Land
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000ton/month |
| Supply Ability: | 2000ton/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO,BV,TUV,SGS |
| HS Code: | 73041900 |
| Transportation: | Ocean,Land |
| Port: | Shanghai |
Heat exchanger tubes are used for cooling, heating or re-heating of gases or fluids in a wide range of industries like ( petro-)chemical, power generation, pharmaceutical and nuclear industry.
Unidus is leading manufacturer, supplier and expoerter of seamless heat exchanger tubes / condenser tubes in highest quality.
Thanks to our in-house bending facility, we can supply our heat exchanger / condenser tubes as U tube with quick delivery and cost-effective rates. Here you get more information on U-tubes
We can offer a wide range of grades and sizes.
Dimensions of heat exchanger tubes:
Outer Diameter(OD) : 0.5″~3″(12.7mm~76.2mm)
Wall Thickness(WT) :0.035″~0.3″(0.89mm~7.62mm)
Lengths and fixed lengths on request
Stainless Steel& Duplex/Super Duplex
Standards
ASTM A 213
ASTM A 268
ASTM A 269
ASTM A 312
ASTM A 376
ASTM A 789
ASTM A 790
All grades also available acc. to ASME II Part A SA
Stainless Steel & Duplex/ Super Duplex Grades
|
Austenitic Steels |
||||||
|
ASTM-Grade |
|
UNS No. |
|
EN / DIN |
|
Material Code |
|
TP 304 |
|
UNS S30400 |
|
1.4301 |
|
X5 CrNi 18-10 |
|
TP 304 H |
UNS S30409 |
1.4948 |
X6 CrNi 18-10 |
|||
|
TP 304 L |
UNS S30403 |
1.4306 |
X2 CrNi 19-11 |
|||
|
TP 316 |
UNS S31600 |
1.4401 |
X5 CrNiMo 17-12-2 |
|||
|
TP 316 H |
UNS S31609 |
1.4919 |
X6CrNiMo 17-13 |
|||
|
TP 316 L |
UNS S31603 |
1.4404 |
X2 CrNiMo 17-12-2 |
|||
|
TP 316 L(-Mo) |
UNS S31603 |
1.4435 |
X2 CrNiMo 18-14-3 |
|||
|
TP 316 Ti |
UNS S31635 |
1.4571 |
X6 CrNiMoTi 17-12-2 |
|||
|
TP 317 L |
UNS S31703 |
1.4438 |
X2 CrNiMo 18-15-4 |
|||
|
TP 321 |
UNS S32100 |
1.4541 |
X6 CrNiTi 18-10 |
|||
|
TP 321 H |
UNS S32109 |
1.4878 |
X8 CrNiTi 18-10 |
|||
|
TP 347 |
UNS S34700 |
1.4550 |
X6 CrNiNb 18-10 |
|||
|
– |
UNS S31254 |
1.4547 |
X1 CrNiMoCuN 20-18-7 |
|||
|
Super Austenitic Steels |
||||||
|
ASTM-Grade |
|
UNS No. |
|
EN / DIN |
|
Material Code |
|
– |
|
UNS N08904 |
|
1.4539 |
|
X1 NiCrMoCu 25-20-5 |
|
Ferritic and Martensitic Steels |
||||||
|
ASTM-Grade |
|
UNS No. |
|
EN / DIN |
|
Material Code |
|
TP 405 |
|
UNS S40500 |
|
1.4002 |
|
X6 CrAl 13 |
|
TP 410 |
UNS S41000 |
1.4006 |
X12 Cr 13 |
|||
|
TP 410 S |
UNS S41008 |
1.4000 |
X6 Cr 13 |
|||
|
TP 430 |
UNS S43000 |
1.4016 |
X6 Cr 17 |
|||
|
Duplex |
||||||
|
ASTM-Grade |
|
UNS No. |
|
EN / DIN |
|
Material Code |
|
– |
|
UNS S31803 |
|
1.4462 |
|
X2 CrNiMoN 22-5-3 |
|
– |
|
UNS S32205 |
|
1.4462 |
|
X2 CrNiMoN 22-5-3 |
|
Super Duplex |
||||||
|
ASTM-Grade |
|
UNS No. |
|
Grade No. |
|
En-Standard |
|
– |
|
UNS S32760 |
|
1.4501 |
|
X2 CrNiMoCuWN 25-7-4 |
|
– |
UNS S32750 |
1.4410 |
X2 CrNiMoN 25-7-4 |
|||
(a) tubes bound with a steel band that has a paper underneathPackaging of heat exchanger tubes
(b) tubes wrapped in plastic sheets, burlap,
(c) tubes in wooden crates.
The tubes are supplied in packages with a circular or hexagonal outline with having weight of 300 – 2500 kg.
Testing of heat exchanger tubes
– prescribed mechanical tests,
– leak tightness test by eddy current,
– hydrostatic testing,
– ultrasound testing.
Certified test reports for heat exchanger tubes
ASTM / ASME A450
EN 10204: for EN 10297 non specified testing (only the mandatory tests), 2.2
specified testing – 3.1.B
after agreement – 3.1.A, 3.1.C, 3.2
DIN 50049, – 2.2, 3.1. B
Straightness of heat exchanger tubes
Straightness deviation for the whole length of a tube L can not exceed value of 0.0015 x L. In conversion to the 1 meter length it can not exceed 3 mm.
Condition of delivery and surface of tubes
Tubes are supplied according to agreed standards. The cold drawn tubes after the final forming go through thermal processing in shielding gas – normalizing.
Surface protection of heat exchanger tubes
The inner and outer surface is protected by a light oil application. Upon request it may be protected with and easy removable oil application on the outer side. The tube ends may be enclosed by a plug
