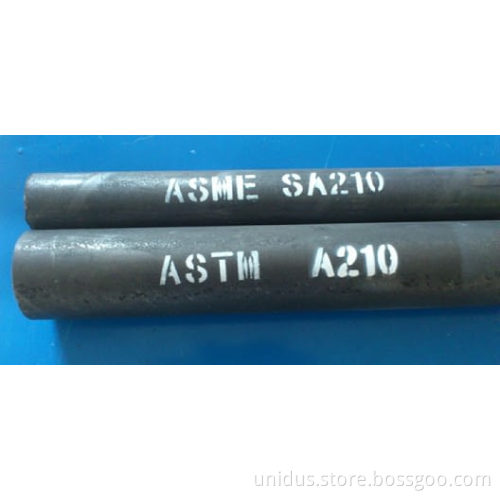

ASTM A210 SEAMLESS MEDIUM-CARBON STEEL BOILER AND SUPERHEATER TUBES
-
USD1000≥1 Ton
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Ton
- Min. Order:
- 1 Ton
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000ton/month |
| Supply Ability: | 2000ton/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO,BV,TUV,SGS |
| HS Code: | 73043190 |
| Transportation: | Ocean |
| Port: | Shanghai |
ASTM A210 —American Society for Testing and Materials Standards
ASME SA210 — AmericanSociety of Mechanical Engineers standards
Purpose:
For boiler pipesand boiler flue pipe, including security side, the dome and the support tubeand superheater tubes minimum wall thickness of seamless carbon steel pipes.
The mainproduction steel grades:
A-1, C, etc. arenegotiated, but also supply other grades of steel.
Mechanicalproperties:
| Standard | Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation (%) |
|
ASTMA210 ASME SA210 |
A-1 | ≥415 | ≥255 | ≥30 |
| C | ≥485 | ≥275 | ≥30 |
Chemical composition:
| Standard | Grade | Chemical Composition | |||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
|
ASTM A210 ASME SA210 |
C | ≤0.35 | ≥0.10 | 0.29～1.06 | ≤0.035 | ≤0.035 | / | / | / | / | / |
| A-1 | ≤0.27 | ≥0.10 | ≤0.93 | ≤ 0.035 | ≤0.035 | / | / | / | / | / | |
Hot-finished tubes need not be heat treated. Cold-finished tubes shall be given a subcritical anneal, a full anneal, or a normalizing heat treatment after the final cold-finishing process.
The tubes shall have a hardness not exceeding the following: 79 HRB or 143 HRB for Grade A-1,89 HRB or 179 HRB for Grade C.
Hydrostatic or Nondestructive Electric Test —Each tube shall be subjected to the hydrostatic, or,
instead of this test, a nondestructive electric test may be used when specified by the purchaser
In addition to the marking prescribed in Specifi-cation A 450/A 450M, the marking shall indicate
whether the tube is hot-finished or cold-finished.
