Aluminum Brass tubes – C68700
-
USD6000≥1 Ton
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Ton
- Min. Order:
- 1 Ton
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000 ton /month |
| Supply Ability: | 1000 ton/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | TUV,BV,SGS |
| HS Code: | 74112200 |
| Transportation: | Ocean,Air |
| Port: | Shanghai |

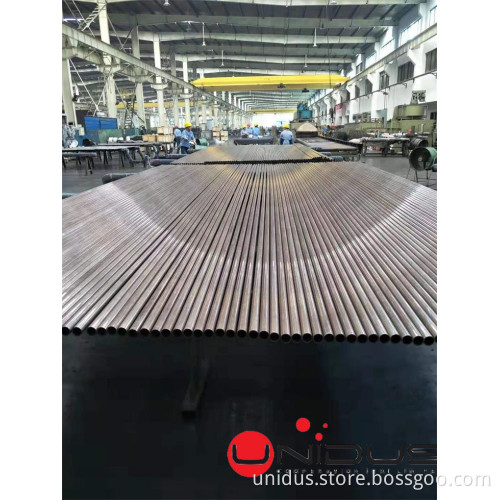

Aluminum Brass tubes – C68700
Resists the action of high-velocity salt and blackish water and is commonly used for condenser tubes. The main characteristic of C68700 is its high resistance to impingement attack. Tubes of this alloys are recommended for use in Marine and Land Power Stations, in which cooling water velocities are high.
It represents the best option for any heat exchanger which is involved with saline water. The additional arsenic has solved the problem of dezincification.
Related material grades in different standards: EN12451 CuZn20Al2As(CW706R),DIN17660/1785 CuZn20Al2,BS2871 CZ110,JIS H3300 C6870,GB/T8890 HAl77-2.
| Properties | Metric | Imperial |
| Density | 8.33 g/cc | 0.301 lb/in³ |
| CTE, linear | 18.5 10-6/°C @ 20.0 – 300 °C | 10.3 10-6/°F @ 70.0 – 570 °F |
| Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
| Thermal Conductivity | 100.4 W/m-K @ 20.0 °C | 58 BTU/ft2/ft/h/°F @ 70.0 °F |
| Melting Point | 932 ~ 971 °C | 1710 ~ 1780 °F |
Theoretical Weight Calculation:
Average Wall: (OD-WnxWT x00265- kg/m (all sizes in mm)
Minimum Wall:(OD-WT)x 0.0275-Kg/m (all sizes in mm)
