Admiralty Brass tubes – C44300
  • Admiralty Brass tubes – C44300
Admiralty Brass tubes – C44300

Admiralty Brass tubes – C44300

  • USD6000
    ≥1 Ton
Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, EXW
Min. Order:
1 Ton
Min. Order:
1 Ton
Delivery Time:
35 Days
Transportation:
Ocean, Air
Port:
Shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 1000 ton /month
Supply Ability: 1000 ton/month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Certificate: TUV,BV,SGS
HS Code: 74112200
Transportation: Ocean,Air
Port: Shanghai
Product Description
Product Description

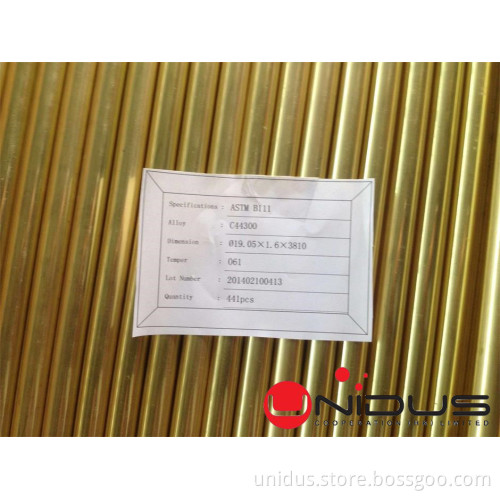

Admiralty Brass tubes – C44300 – has good corrosion resistance and is specially used for tubing of steam condensers cooled with fresh, salt or brackish water. Admiralty metal tubes are also used for heat exchangers in oil refineries, in which corrosion from sulfur compounds and contaminated water may be very severe, and for feed-water heaters and heat-exchanger equipment as well as other industrial processes.

Related material grades in different standards: EN12451 CuZn28Sn1As(CW706R),DIN17660/1785 CuZn28Sn1,BS2871 CZ111,JIS H3300 C4430,GB/T8890 HSn70-1.




Properties Metric Imperial
Density 8.53 g/cc 0.308 lb/in³
CTE, linear 20.2 10-6/°C @ 20.0 – 300 °C 11.2 10-6/°F @ 70.0 – 570 °F
Specific Heat Capacity 0.09 cal/g-°C @ 20ºC 0.09 BTU/lb-°F @ 70ºF
Thermal Conductivity 109 W/m-K @ 20.0 °C 64 BTU/ft2/ft/h/°F @ 70.0 °F
Melting Point 899 ~ 938 °C 1650 ~ 1720 °F

Theoretical Weight Calculation:

Average Wall: (OD-WnxWT x00265- kg/m (all sizes in mm)

Minimum Wall:(OD-WT)x 0.0275-Kg/m (all sizes in mm)
