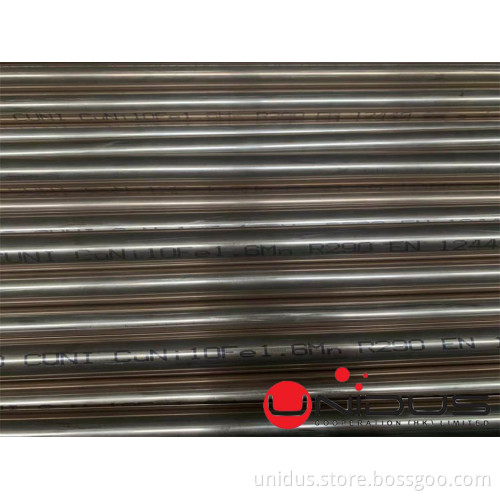

Copper Nickel 90/10 tubes
-
USD6000≥1 Ton
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Ton
- Min. Order:
- 1 Ton
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000 ton /month |
| Supply Ability: | 1000 ton/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | TUV,BV,SGS |
| HS Code: | 74112200 |
| Transportation: | Ocean,Air |
| Port: | Shanghai |
Copper Nickel 90/10 tubes, – C70600 – exhibits excellent resistance to impingement attack. It is also highly resistant to SSC. This alloy is suitable for Marine condenser tube installations in place of Aluminum Brass, especially where higher water velocities are encountered.With same application fields as C71500 for condenser, evaporator and heat exchanger tubes; distiller tubing; salt water system.
Other related material grades in different standards: EN12451 CuNi10Fe1Mn(CW352H),DIN17664/1785 CuNi10Fe1Mn,BS2871 CN102,JIS H3300 C7060,GB/T8890 BFe10-1-1.
Theoretical Weight Calculation:
Average Wall: (OD-WnxWT x00284- kg/m (all sizes in mm)
Minimum Wall:(OD-WT)x 0.0295-Kg/m (all sizes in mm)
Properties
Metric
Imperial
Density
8.94 g/cc
0.323 lb/in³
CTE, linear
17.1 10-6/°C @ 20.0 – 300 °C
9.5 10-6/°F @ 70.0 – 570 °F
Specific Heat Capacity
0.09 cal/g-°C @ 20ºC
0.09 BTU/lb-°F @ 70ºF
Thermal Conductivity
45 W/m-K @ 20.0 °C
26 BTU/ft2/ft/h/°F @ 70.0 °F
Melting Point
1099 – 1149 °C
2010 – 2100 °F
