ASTM A513 Alloy Mechanical Tube

USD1000

≥5 Metric Ton

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 5 Metric Ton

Min. Order:: 5 Metric Ton

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000ton/month
Supply Ability:	3000ton/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	TUV,BV,SGS
Transportation:	Ocean
Port:	Shanghai

Product Description

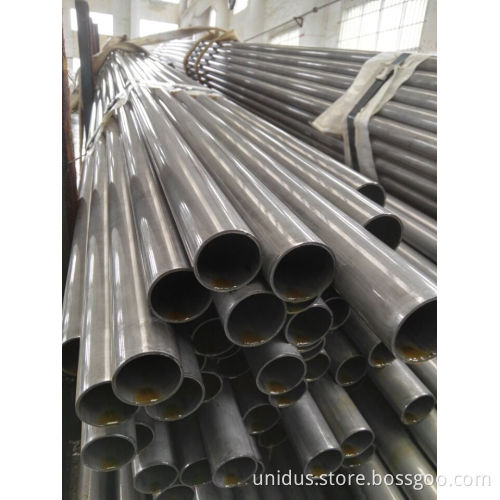

Alloys ASTM A513 Tube for Mechanical Application

ASTM A513 covers electric-resistance-welded carbon and alloy steel tubing for use as mechanical tubing.made from hot- or cld-rolled steel in shape of round, square, rectangular, and special shape.

Alloy grades:ASTM A513 1020 - 1026 Mild (low-carbon) steel

Outer Diameter:6.35 mm To 101.6 mm

Wall Thickness :0.71mm-3.4mm

Length:5800mm-16000mm

Application:Commonly used in the automotive, appliance and construction industries

Corresponding standards:ASTM A-213，DIN/17175

Alloy ASTM A513 Mechanical Tube chemical composition

Grade Designation	Composition. %
Carbon	Manganese	Phosphorus. max	Sulfur, max	Silicon	...Nickel...	Chromium	Molybdenum
1008	0.10 max.	0.50 max	0.035	0.035	...	....	...	...
1010	0.08-0.13	0.30-0.60	0.035	0.035	...	...	...	...
1012	0.10-0.15	0.30-0.60	0.035	0.035	...	...	...	...
1015	0.12-0.18	0.30-0.60	0.035	0.035	...	...	...	...
1016	0.12-0.18	0.60-0.90	0.035	0.035	...	...	...	...
1017	0.14-0.20	0.30-0.60	0.035	0.035	...	...	...	...
1018	0.14-0.20	0.60-0.90	0.035	0.035	...	...	...	...
1019	0.14-0.20	0.70-1.00	0.035	0.035	...	...	...	...
1020	0.17-0.23	0.30-0.60	0.035	0.035	...	...	...	...
1021	0.17-0.23	0.60-0.90	0.035	0.035	...	...	...	...
1022	0.17-0.23	0.70-1.00	0.035	0.035	...	...	...	...
1023	0.19-0.25	0.30-0.60	0.035	0.035	...	...	...	...
1024	0.18-0.25	1.30-1.65	0.035	0.035	...	...	...	...
1025	0.22-0.28	0.30-0.60	0.035	0.035	...	...	...	...
1026	0.22-0.28	0.60-0.90	0.035	0.035	...	...	...	...
1027	0.22-0.28	1.20-1.55	0.035	0.035	...	...	...	...
1030	0.27-0.34	0.60-0.90	0.035	0.035	...	...	...	...
1033	0.29-0.36	0.70-1.00	0.035	0.035	...	...	...	...
1035	0.31-0.38	0.60-0.90	0.035	0.035	...	...	...	...
1040	0.36-0.44	0.60-0.90	0.04	0.05	...	...	...	...
1050	0.47-0.55	0.60-0.90	0.04	0.05	...	...	...	...
1060	0.55-0.66	0.60-0.90	0.04	0.05	...	...	...	...
1340	0.38-0.43	1.60-1.90	0.035	0.04	0.15-0.35	...	...	...
1524	0.18-0.25	1.35-1.65	0.04	0.05	...	...	...	...
4118	0.18-0.23	0.70-0.90	0.035	0.04	0.15-0.35	...	0.40-0.60	0.08-0.15
4130	0.28-0.33	0.40-0.60	0.035	0.04	0.15-0.35	...	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.035	0.04	0.15-0.35	...	0.80-1.10	0.15-0.25
5130	0.23-0.33	0.70-0.90	0.035	0.04	0.15-0.35	...	0.80-1.10	...
8820	0.18-0.23	0.70-0.90	0.035	0.04	0.15-0.35	0.40-0.70	0.40-0.60	0.15-0.25
8630	0.28-0.33	0.70-0.90	0.035	0.04	0.15-0.35	0.40-0.70	0.40-0.60	0.15-0.25
