Wear Resistant Plate
- Min. Order:
- 100 Kilogram
- Min. Order:
- 100 Kilogram
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai, Qingdao, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 tons |
| Supply Ability: | 50,000㎡ wear plate per year |
| Payment Type: | L/C,T/T,D/P,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDU,DDP,DEQ,CIP,CPT |
| Certificate: | ISO9001: 2015 |
| HS Code: | 72109000000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai,Qingdao,Shenzhen |

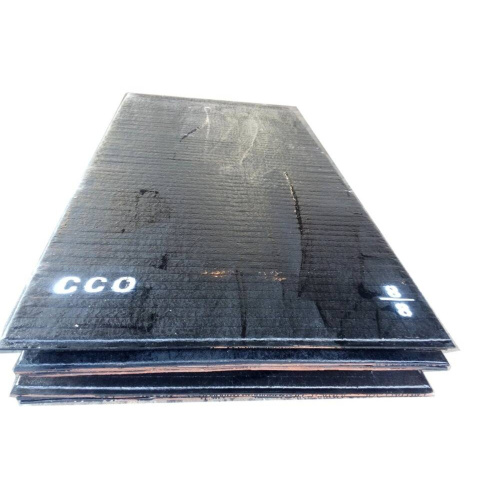

Wear Plate is kind of Chromium Carbide Overlay Steel consisting of mild steel as base and Chromium Carbide Overlayer.
The smooth surface of a Chromium Carbide Wear Plate can reduce the coefficient of friction and thus reduce wear. At the same time, it can also reduce material hang-up in "sticky" applications (iron ore mines). The friction coefficient of the polished HP Clad Plate is 35-45%lower than other wear resistant products. In "sticky" applications or in cold areas, the probability of material hang-up is reduced by65-75%
A crack-free smooth surface also has a natural advantage when there is impact and wear. An uneven wear surface can increase the wear rate through micro-turbulence and impact.
HP Abrasion Resistant Steel Plate have been widely used in the fields of mining, quarrying, cement, metallurgy, thermal power, engineering and mining machinery.
Quick View On Product
1. Product Name: HP Chromium Carbide Overlay Wear Plate
2. Body Material: A36 Mild Steel + Chromium Carbide Overlay (Hardfacing)
3. Grade: HP700, HP700S, HP750X, HP750P
4. Standard Size: 1200*2400mm; 1500*3000mm;2200*3000mm or customised
5. Quality Standard: ASTM G65, AISI, ASTM, BS, DIN, GB, JIS
6. Applications: Cement Industry, Steel Mill,Mining Site, Coal Mine
Chemical Industry, Power Generation & Others
7. Certification: ISO9001, SGS, CTI, ROHS
Standard Specifications of HP Wear Plate :
Packing & Delivery of Wear Plate
Packing Way: By Steel Tube, By Steel Belt, By Steel Pallet
Delivery Time: 20 days after order confirmation
Anti-abrasion Comparison_HP Plate vs Other Plate
Company Information
HP Plate (Huifeng Wear Resistant Industry Co., Ltd.) was founded in 1994, as the former Taiwan's Upking-Kurimoto Ltd., led by president Mr. Zhang Kun-Mou, using the world-famous Japanese KURIMOTO hardfacing welding patented technology & welding materials produced by Vautid GmbH. HP Plate has become the most experienced expert specializing in production and sales of wear resistant products.
HP Wear Products Range:
HP Wear Product Applications
Cement Plant, Mining Site, Steel Mill, Power Generation, Glass Industry,
Dredging, Surgar Industy, Quarry, Construction, etc...where need to be anti-abrasion.
HP Factory Laboratory
Company ISO Certificates:
FAQ On HP Wear Products
Question: Can I cut or drill a hole in an HP overlay plate?
Answer: No. The chromium-carbide layer is not drillable or machineable. When necessary, you may be able to cut it with plasma, waterjet, or arc-gouging.
Question: What are the most popular applications with hardfacing products?
Answer: The typical applications include Mining Site, Steel Mill, Cement Industry, Power Generation, Glass Industry, Construction, Dredging, Oilsand, etc where need to fight with abrasion and impact.
