3on5 Weld Overlay Plate

$1.00

100-99 Kilogram
$9.90

≥100 Kilogram

Transportation:: Ocean, Land, Air

Port:: Shanghai, Qingdao, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	50,000㎡ wear plate per year
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	ISO9001: 2015
HS Code:	72109000000
Transportation:	Ocean,Land,Air
Port:	Shanghai,Qingdao,Shenzhen

Product Description

We Want to Solve Your Wear Problems! HP Plate is committed to solving our customer's wear problems.

Same as the popular brands in market like UP Wear Resistant Plate, Vautid Wear Resistant Steel Plate, WA Wear Resistant Plate, Triten Wear Steel Plate, HP Chromium Carbide Overlay Plate is a bi-metal plate consisting of a low carbon or alloyed steel base plate and a layer of wear resistant deposit. While HP Wear Plate is with the better cost performance.

Let us know about your particular application. We will partner with you to find the right solution.

Quick View On Product

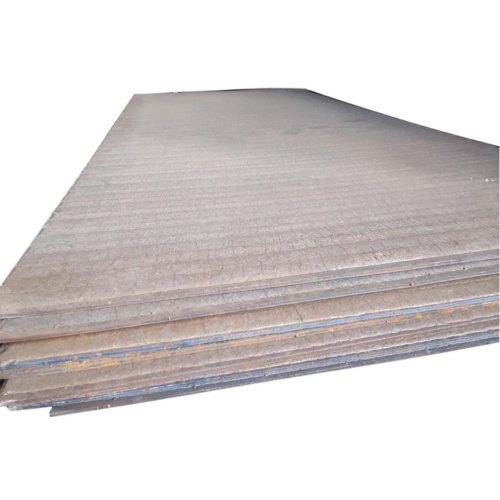

1. Product Name: HP Chromium Carbide Overlay Wear Plate

2. Body Material: A36 Mild Steel + Chromium Carbide Overlay (Hardfacing)

3. Grade: HP700, HP700S, HP750X, HP750P

4. Standard Size: 1200*2400mm; 1500*3000mm;2200*3000mm or customised

5. Quality Standard: ASTM G65, AISI, ASTM, BS, DIN, GB, JIS

6. Applications: Cement Industry, Steel Mill,Mining Site, Coal Mine

Chemical Industry, Power Generation & Others

7. Certification: ISO9001, SGS, CTI, ROHS

Wear Resistant Plates

Zigzag Wear Resistant Plates

Smooth Surface Wear Plates

Standard Specifications of HP Wear Plate :

Packing & Delivery of Wear Plate

Packing Way: By Steel Tube, By Steel Belt, By Steel Pallet

Delivery Time: 20 days after order confirmation

Wear Plates Packages On Pallet

Wear Plates Packages

Wear Plates Delivery

Anti-abrasion Comparison_HP Plate vs Other Plate

Company Information

HP Plate (Huifeng Wear Resistant Industry Co., Ltd.) was founded in 1994, as the former Taiwan's Upking-Kurimoto Ltd., led by president Mr. Zhang Kun-Mou, using the world-famous Japanese KURIMOTO hardfacing welding patented technology & welding materials produced by Vautid GmbH. HP Plate has become the most experienced expert specializing in production and sales of wear resistant products.

Wear Plate Production

HP Wear Products Range:

Wear Plate Wear Parts Hardfacing Wire

HP Wear Product Applications

Cement Plant, Mining Site, Steel Mill, Power Generation, Glass Industry,

Dredging, Surgar Industy, Quarry, Construction, etc...where need to be anti-abrasion.

HP Factory Laboratory

Company ISO Certificates:

FAQ On HP Wear Products

Question: Can I cut or drill a hole in an HP overlay plate?

Answer: No. The chromium-carbide layer is not drillable or machineable. When necessary, you may be able to cut it with plasma, waterjet, or arc-gouging.

Question: Is it normal to see cracking in hardfacing plating?

Answer: It depends on the hardfacing alloy. Many chromium carbide alloys check-crack when cooled to moderate temperatures; this is normal. Other alloys, such as the austenitic and martensitic, do not crack when applied properly. Check cracking can be seen as cracking perpendicular to the bead length. This occurs by the high stress that is experienced when the weld metal cools. The cracking stops at the parent metal underneath, as long as the parent metal is not brittle. If the parent metal is hard or brittle, you should choose a buffer layer of a softer, and tougher, weld metal.

Question: What are the most popular applications with hardfacing products?

Answer: The typical applications include Mining Site, Steel Mill, Cement Industry, Power Generation, Glass Industry, Construction, Dredging, Oilsand, etc where need to fight with abrasion and impact.

Question: What metals can be protected with hardfacing?

Answer: Carbon and low-alloy steels with carbon contents of less than 1 percent can be hardfaced. High-carbon alloys may require a special buffer layer. Some of the base metals that can be hardfaced include: stainless steels, manganese steels, cast irons and steels, nickel-base alloys, copper-base alloys.

Question: What is hardfacing?

Answer: Hardfacing is also known as hardsurfacing. It is the process of adding wear-resistant weld metals to the surface of a metal part to protect it from wear and abrasion. Adding the weld metal plates can be achieved through welding or joining.
