Wear Resistant Steel Sheet

$1.90 - $9.90/Kilogram

Min. Order:: 100 Kilogram

Min. Order:: 100 Kilogram

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Qingdao, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500 tons per year
Supply Ability:	50,000㎡ wear plate per year
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,DDP,DDU,CPT,CIP
Certificate:	ISO9001: 2015
HS Code:	72109000000
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Qingdao,Shenzhen

Product Description

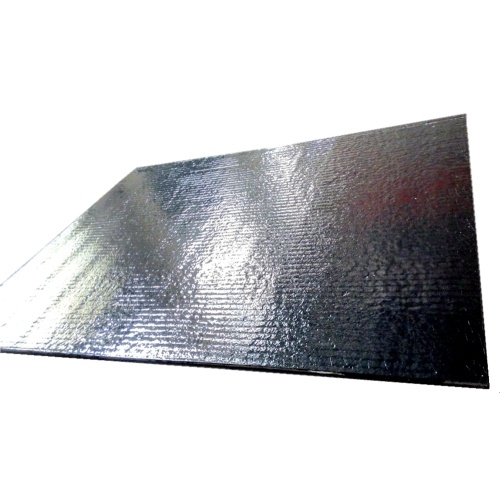

Wear Resistant Steel Sheet

HP High End Wear-Resisting Plate offers low cost on wear protection. With a hardness of 250 to 320 BHN, it will outlast hot rolled carbon plate but can still be drilled, punched, or machined for liners and wear plates. Strength characteristics of this plate make it an excellent choice for structural use. ARCO Plat is available in thicknesses from 3/16” to 3”. NM400 Wear Resistant Steel Plate that we offer to market is being quenched and tempered to make the high strength.

SSAB Wear Resistant Plate may be cut by gas, plasma, laser or abrasive water jet. It is a good completement to Chromium Carbide Overlay Steel as idea wear solution to mining site

Quck View On Product

1. Product Name: HP Non Cracked Overlay Plate

2. Body Material: A36 Mild Steel + Chromium Carbide Overlay (Hardfacing)

3. Standard Size: 1200*2400mm; 1000*3000mm or Customised

5. Quality Standard: ASTM G65, AISI, ASTM, BS, DIN, GB, JIS

6. Applications: Cement Industry, Steel Mill,Mining Site, Coal Mine, Chemical Industry, Power Generation & Others

7. Certification: ISO9001, SGS, CTI, ROHS

abrasion resistant plate

wear plate material

Standard Specifications of HP Wear Plate :

Wear Plate Specification

Packing & Delivery of Wear Plate

Packing Way: By Steel Tube, By Steel Belt, By Steel Pallet

Delivery Time: 20 days after order confirmation

Wear Plates Packages On Pallet

Wear Plates Packages

Wear Plates Delivery

Anti-abrasion Comparison_HP Plate vs Other Plate

Company Information

HP Plate (Huifeng Wear Resistant Industry Co., Ltd.) was founded in 1994, as the former Taiwan's Upking-Kurimoto Ltd., led by president Mr. Zhang Kun-Mou, using the world-famous Japanese KURIMOTO hardfacing welding patented technology & welding materials produced by Vautid GmbH. HP Plate has become the most experienced expert specializing in production and sales of wear resistant products.

Wear Plate Production

HP Wear Products Range:

Abrasion Resistant Steel Plates (2)

HP Wear Product Applications

Cement Plant, Mining Site, Steel Mill, Power Generation, Glass Industry,

Dredging, Surgar Industy, Quarry, Construction, etc...where need to be anti-abrasion.

HP Factory Laboratory

Company ISO Certificates:

FAQ On HP Wear Products

Question: Can I cut or drill a hole in an HP overlay plate?

Answer: No. The chromium-carbide layer is not drillable or machineable. When necessary, you may be able to cut it with plasma, waterjet, or arc-gouging.

Question: Is it normal to see cracking in hardfacing plating?

Answer: It depends on the hardfacing alloy. Many chromium carbide alloys check-crack when cooled to moderate temperatures; this is normal. Other alloys, such as the austenitic and martensitic, do not crack when applied properly. Check cracking can be seen as cracking perpendicular to the bead length. This occurs by the high stress that is experienced when the weld metal cools. The cracking stops at the parent metal underneath, as long as the parent metal is not brittle. If the parent metal is hard or brittle, you should choose a buffer layer of a softer, and tougher, weld metal.

Question: What are the most popular applications with hardfacing products?

Answer: The typical applications include Mining Site, Steel Mill, Cement Industry, Power Generation, Glass Industry, Construction, Dredging, Oilsand, etc where need to fight with abrasion and impact.

Question: What metals can be protected with hardfacing?

Answer: Carbon and low-alloy steels with carbon contents of less than 1 percent can be hardfaced. High-carbon alloys may require a special buffer layer. Some of the base metals that can be hardfaced include: stainless steels, manganese steels, cast irons and steels, nickel-base alloys, copper-base alloys.

Question: What is hardfacing?

Answer: Hardfacing is also known as hardsurfacing. It is the process of adding wear-resistant weld metals to the surface of a metal part to protect it from wear and abrasion. Adding the weld metal plates can be achieved through welding or joining.
