water filling machine water bottling plant equipment

 Application :
Pure water ,mineral water, drinking water, soda water, flavered water , natural water ,spring water ,potable water

Liquid Filling Machine
Bottle Filling Machine
  Bottle volume :

0.2L-2L
(Big than 2L bottle volume,we have other machinery can meet your 2L -20L bottle volume requirement) .

The Water machinery combiblock is composed by :

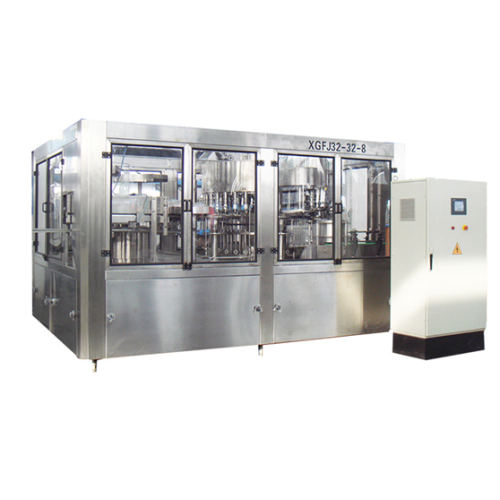

RINSER-FILLER-CAPPER 3 in 1 monoblock

General description:
XGF is special for drinking water filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of water filling technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.

Automatic Bottled Water Production Line Supplier
Water Bottling Machine Small
Automatic Bottle Water Filling Line
Automatic Bottled Water Production Line


Features:
1. Compact structured, good-looking, easy to operate and highly automated.
2. Air conveyor is directly linked with feed-in star wheels, making it easier to change bottles without screws and conveyor chains.
3. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement and adjustment of steel star wheels, which instead of adjusting the height of machine.
4. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
6. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
8. Valve on-off system is driven by neck supporting plates of bottle carrying mechanism.
9. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10. The arrangement of steel gear and nylon gear is chiastic to reduce noise.
11. The bottom plate which fixed in the feed-out star wheel goes down in the manner of screw. Bottles can be changed without adjustment of height of conveyor chain.
12. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13. Highly effective cap sorting and feed in system is protective for feed in and cap absence.
14. Equipped with overload system to safeguard machine and operators.
15. Touch screen operated.
16. Main electronic components (touch screen, PLC and frequency inverter) are imported products.

 Equipment structure:

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.

China Water Bottling Machine Small
Automatic Bottle Water Filling Line

Main configuration:
1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).
