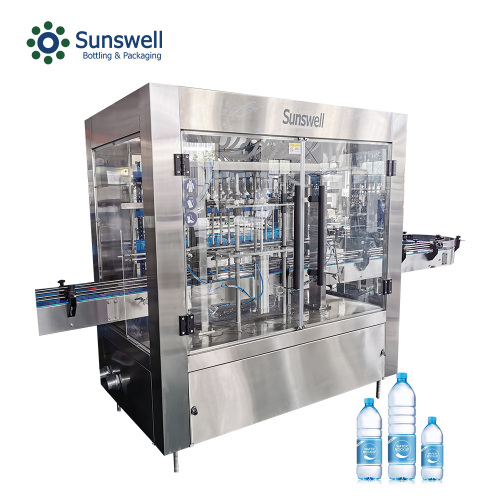

500ML Automatic Water Filling Machine Production Line

Automatic water filling line/water filling production line/water filling machine
The washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as pure water, mineral water and soon. The whole equipment is sleek and is capable of bottling various sizes of bottles ranging from 500 ml to 2 litres. It is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.Wash-filling-capping 3-in-1: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

3L, 4L, 5L big bottle linear 3-in-1 Water Filling Machine Main features

Rinsing part

The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through
photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of
cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure
water to the bottle, after 30s, stop it, the oVERTUrn cylinders reset, input the conveyor system and go to filling machine.
This's Liquid Filling Machine

After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then
the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt.
Output to the capping part.

Screw capping machine

The screw capping machine is made of 4 screw capping heads frame, after the filled bottle convey to the screw capping machine
station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.

This's Automatic Aluminum Can Filling Machine

sealing pure water filling machine.water line for producing bottles water

Include Filling Capping Machine

water bottle filling machine.small bottle filling machine.small bottle filling and capping machine

Our company leads the market in the field of machinery with advanced technologies in terms of our beverage packaging.

We provide a wide range of beverage packaging products. Our machinery has the most comprehensive scope. We enjoy worldwide praise with

10 years of global marketing experience. We have a large number of customers worldwide and we have various end products.

Our product range covers all types of machinery for the packaging of liquid, including water, tea, juice, carbonated soft drink, energy drink, alcoholic drink, beer, edible oil, dairy products, etc.

We provide good quality and technology from raw material to bottled liquid. We are a good supplier, well known for developing innovative high-end products and new technologies.

Our company offers a complete portfolio of support and consulting services, from project engineering to customized solutions and after-sales services. We also provide production optimization, training and advisory services, even end product development. We are looking forward to establishing relationships with you in the near future.
