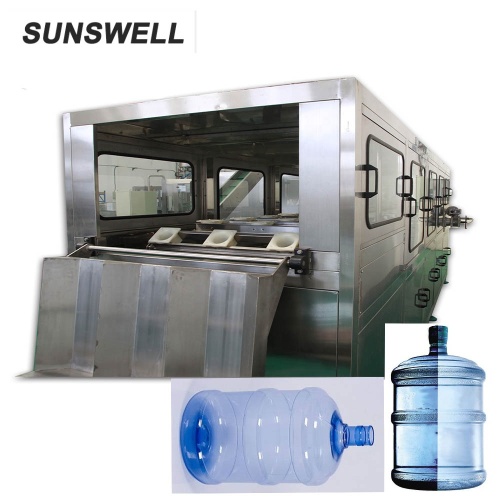

Automatic 5Gallon Water Filling Production Filling machine
-
$20000.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Supply Ability: | 50 sets per year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | CE, ISO |
| Transportation: | Ocean |
| Port: | shanghai |
Main Features
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic.
The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic.
The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
This is Automatic Bottled Water Production Line
|
Model
|
QGF-100
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
QGF-2000
|
|
Number of filling heads
|
1
|
2
|
3
|
4
|
8
|
12
|
16
|
|
Filling capacity
|
18.9
|
18.9
|
18.9
|
18.9
|
18.9
|
18.9
|
18.9
|
|
Barrel size (mm)
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
|
Production capacity (b/n)
|
100-120
|
200-240
|
300-400
|
600
|
900
|
1200
|
2000
|
|
Gas pressure (Mpa)
|
0.4-0.6
|
0.4-0.6
|
0.6
|
0.6
|
0.6
|
0.6
|
0.6
|
This is Filling Capping Machine
、
Advantages:
- The machine integrates rinser, filler and capper together.
- The machine is of stainless steel, resisting corrosion and easy to clean.
- The main electrical components and gas circuit elements are all of international brand.
- Water pump is Nanfang, Hangzhou (Grundfos is available)
- Nozzle is of America’s Spraying System Company’s technology.
Liquid Filling Machine,Bottle Filling Machine Manufacturer
Details
Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
Outer Brusher
Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing
Washing-filling-capping 3-in-1 Monoblock
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
