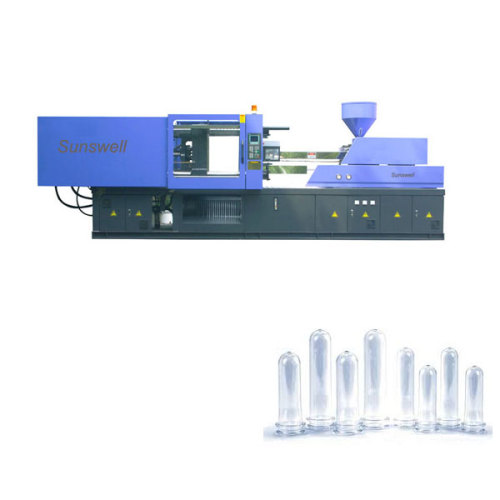

injection molding machine price 180t

$20000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Supply Ability:	50 sets per year
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	CE, ISO
Transportation:	Ocean
Port:	shanghai

Product Description

Stable and high-rigidity mechanical structure

The T-slot platens are designed with a European style structure and completely optimized with higher durability, less deformation and better parallelism, so that the repeatability of clamping force is higher. Rigid materials and sophisticated processes are applied to the manufacturing of machine frame to ensure the machine is robust, stable and reliable.

INJECTION DEVICE		S2100	S3200	S2500
Screw Diameter	MM	82	95	82	95
Screw L/D	L/D	24:1	24:1	24:1	24:1
Theoretical Shot Volume	CM3	2000	3100	2000	3100
Injection Weight(PET)	G	2050	3160	2050	3160
Injection Stroke	MM	390	440	390	440
Injection Pressure	MPA	132	133	132	133
CLAMPING UNIT
Clamping Force	KN	3600	4000
Toggle Stroke	MM	660	730
Space Between Tie Bars	MM	680*680	720*720
Mold Height(Min-Max)	MM	280-680	280-750
Ejection Stroke	MM	190	230
Ejection Force	KN	138	138
OTHER
Max System Pressure	MPA	16	16	16	16
Oil Pump Motor Power	KW	55.5(Servo)	79.6(Servo)	55.5(Servo)	79.6(Servo)
Heater Power	KW	49.5	60.3	49.5	60.3
Machine Size	MM	8.2(8.5)1.82.4		8.9(9.2)192.5
Machine Weight	TONS	14	15.5	15	16.5

Sunswell Standard series

-High precision: Products repeat accuracy up to 0.3%

-Energy: the highest measured energy level of injection molding machine to achieve a level

-Low Noise: to provide a relatively quiet working environment.

Injection Molding Machine

Clamping unit.

--Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the unitform of toggle manufacturing size, minimizing the gap between pipe and pin, improve the accurancy and application life of the toggle

--Adopting gear-adjusting ring with high-recision, large sacle transfer and companct structure to facilitate customer adjusting the mold thickness in manual or automatic.

Injection Molding Machine

Injecition unit

-- Injection unit adoptes double-cyclinder design, more higher injection pressure, more simpler sturcture and lower malfunctin rate.

--Enlarged-cylinder, adopting two cylinder design, effectively prevent the ahesive material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operatiion.

Electric parts

Blow Molder
Pet Stretch Molding Machine Manufacturer
Extrusion Blow Moulding Machine
Blow Molder,Pet Stretch Molding Machine
