Linear Type Bottle Water Filling and Capping Machine

complete water bottling plant

This machine is designed for bottling non-carbonated drinks,such as pure water,mineral water etc, itintegrates bottle washing, filling and capping into one monobloc unit.Suspending bottle-neck clamping design makes bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

Liquid Filling Machine,Bottle Filling Machine Manufacturer

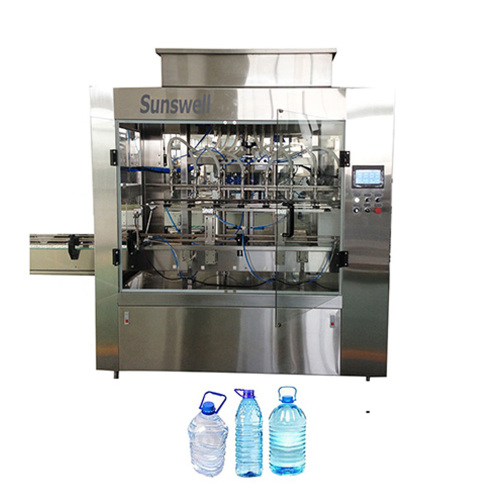

3L, 4L, 5L big bottle linear 3-in-1 Water Filling Machine Main features

Rinsing part

The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through
photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of
cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure
water to the bottle, after 30s, stop it, the oVERTUrn cylinders reset, input the conveyor system and go to filling machine.

Filling machine

After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then
the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt.
Output to the capping part.

Screw capping machine

The screw capping machine is made of 4 screw capping heads frame, after the filled bottle convey to the screw capping machine
station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.

sealing pure water filling machine.water line for producing bottles water

water bottle filling machine.small bottle filling machine.small bottle filling and capping machine

Automatic Bottle Water Filling Line

Our company leads the market in the field of machinery with advanced technologies in terms of our beverage packaging.

We provide a wide range of beverage packaging products. Our machinery has the most comprehensive scope. We enjoy worldwide praise with

10 years of global marketing experience. We have a large number of customers worldwide and we have various end products.

Our product range covers all types of machinery for the packaging of liquid, including water, tea, juice, carbonated soft drink, energy drink, alcoholic drink, beer, edible oil, dairy products, etc.

We provide good quality and technology from raw material to bottled liquid. We are a good supplier, well known for developing innovative high-end products and new technologies.

Our company offers a complete portfolio of support and consulting services, from project engineering to customized solutions and after-sales services. We also provide production optimization, training and advisory services, even end product development. We are looking forward to establishing relationships with you in the near future.
