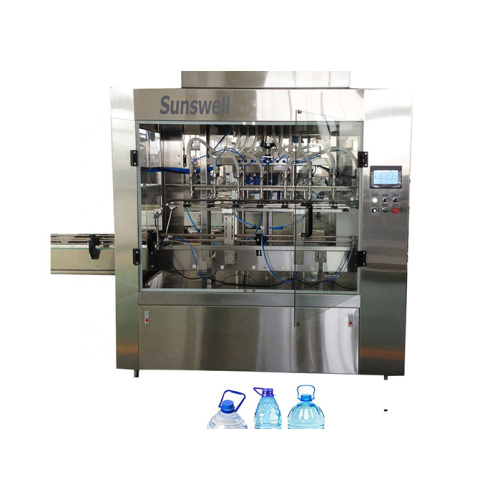

Big Bottle Linear type 3-in-1 Water Filling Machine

The machine adopts hanging card bottle conveying structure

so that the whole line operation is more reliable. Different bottles only need to adjust the height of the empty bottle conveyor belt and a smallamount of accessories, and the height of the bottle conveyor belt does not need to be adjusted, so that the bottle shape change is more efficient and convenient. The spring type washing hand clamp, empty bottles with automatic track 180 degree flip, the inner part of the bottle washing, the washing nozzle adopts a quincuncial porous, so each angle of bottle bottom can be fully rinsed, improving washing efficiency.

China leading manufacturers and suppliers of Filling And Capping Machine,Liquid Filling Machine, and we are specialize in Bottle Filling Machine,Beverage Filling Machine, etc.

3L, 4L, 5L big bottle linear 3-in-1 Water Filling Machine Main features

Rinsing part

The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through
photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of
cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure
water to the bottle, after 30s, stop it, the oVERTUrn cylinders reset, input the conveyor system and go to filling machine.

Filling machine

After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then
the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt.
Output to the capping part.

Screw capping machine

The screw capping machine is made of 4 screw capping heads frame, after the filled bottle convey to the screw capping machine
station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.
