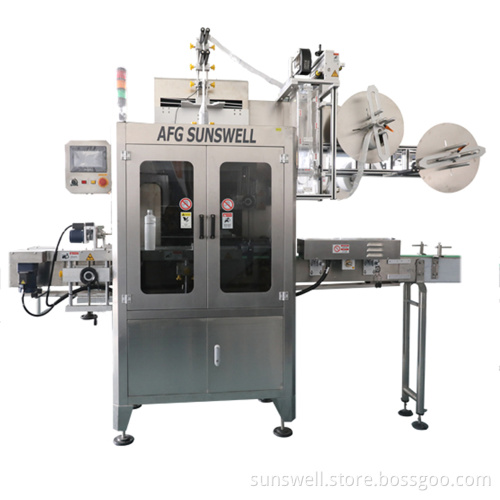

Double Head Shrink Sleeve Labeling Machine
-
$20000.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Shanghai, Ningbo
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 5000-9000 bottles per hour |
Supply Ability: | 20 sets per month |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,EXW |
Certificate: | CE |
Transportation: | Ocean |
Port: | Shanghai,Ningbo |
1.Application
Suitable for various kinds of bottle type of fruit juice, tea beverage, dairy products, pure water, condiment, beer, sports drinks such as food and beverage.
2.Bottle Type
round bottle, square bottle, flat bottle, curve bottle, cup and so on.
Bottling And Labeling Machines
China Pe Film Shrink Wrapper
3.Features
1).The standard position precision is high, and shrinkage can highlight the perfect shape of bottle.
2).High and stable mechanical structure of the whole machine adopts stainless steel protection box cover and aluminum alloy rigid frame, solid doesn't rust.
3).High quality positioning accuracy: all mechanical transmission design, using force set timescale, and various membrane materials 0.03-0.13mm film thickness, membrane material applies 5-10 range inner diameter can be adjusted.
4).Low maintenance cost: the spare parts of the machine is easy to change, low cost burden.
5).Reliable after-sale service: this machine various spare parts warehouse all have spare, can offer, and experienced engineers provides technical support.
6).Exclusive design :reciprocating cutting knives, adopt high technic, rigid body movements smooth, the tool life extend one times.
7).The structure of the machine is simple and easy, can ensure low failure rate, maintenance and simple.
8).Simple type center word column positioning, specifications, the operator is convenient to use easy replacement of manipulating plain, easiness, completely avoid the user's problems.
Labeling Machine Data
Type
|
TB-150A
|
Main engine size (length*width*height)
|
1700L*800W*2000H(mm)
|
Machine Weight
|
1800Kg
|
Main engine production speed
|
Max. 12000 bottle per hour
|
Main engine power supply
|
3,380v/220v
|
Main engine power
|
5KW
|
Label length
|
25mm-180mm
|
Label thickness
|
0.035mm-0.13mm
|
Label material
|
PVC.PET.OPS
|
Bottle/can height
|
15mm-320mm
|
Bottle/can diameter
|
28mm- 125 (special design for extra-big bottle)
|
Bottle/can shape
|
round, square, elliptic, rectangular
|
Shrink Tunnel
Input Power Supply of Blower
|
AC220/380V 50Hz 1.1KW
|
Transporting Speed
|
0-35M/min
|
Working Pressure
|
≤0.1Mpa
|
Steam Consumption
|
10-20Kg/H
|
Weight
|
230kg
|
Overall size
|
1800x400x400mm(LxWxH)
|
Steam generator
Input Power Supply of Blower
|
AC220V/380 18KW
|
Steam Pressure
|
0.25-0.4Mpa
|
Vapor Generation Value
|
48Kg/h
|
Weight
|
96kg
|
Overall size
|
600x550x1200mm(LxWxH)
|
