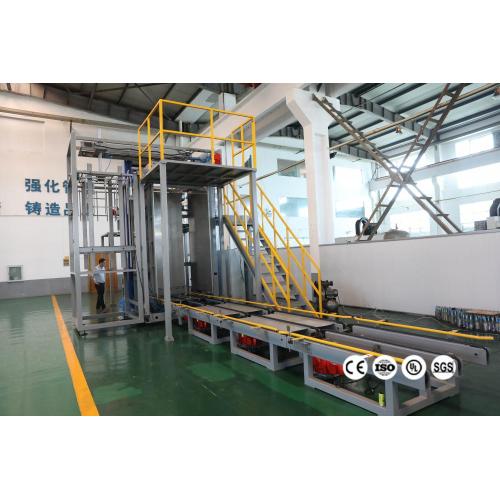

Chinese Factory Depalletizer Empty Can Depalletizer Machine

Products Description

High level bulk can depalletizer are mechanical machine that unload (depalletize) packaged empty cans or glass bottles from the pallet. The depalletizer allows the transfer of products and materials from pallets without the use of human personnel, saving the time, money and effort.

Machinery Structure

Pallet stacker

Isolate pad pneumatic mover

Four sides cylinder clamp holder

Advantages

1. High performing2. Reliable
3. Flexible (in terms of container, format and pallet)
4. Quick and easy format changeover
5. Completely automated
6. Fully customizable
7. High operator safety standards

Appliance scope

For various metal cans, glass bottles, plastic bottles for layered depalletizing.

Depalletizer workflow and principles

1. Forklift put the whole stack cans/bottles into unstacking station (hydraulic lift table)2. Chain lifter will transit the packed pallet to the upper most of the depalletizer.
3. Four sides clamps will hold the uppermost whole layer cans or bottles from four sides, moving in parallel to the outlet multi lane conveyor.
4. The the four sides cylinder clamps will back to original position.
5. Pneumatic absorb hands will absorb the next layer top side isolate pad, move the pad to pad collector.
6. Chain lifter, hold the board rise to a certain height crib.
7. Do the same procedure until the last layer, hydraulic lifts pallet fell to bottom, then transit to empty pallets stacker.
8. Forklift remove the empty pallet.

Specification

Technical parameters

Model: XD600Capacity: 36000CPH (330ml)
Feed adjustable: +/-50mm
Platform: carbon steel
Conveyor height: 3100mm
Pallet height: 2800mm
Workshop height: 4500mm
Empty pallet stacker: ten pallets
Pallet size: L1420mm*W1120mm*H150mm (customized)
Overall dimension: L5800mm*W1350mm*H3700mm
Weight: 3700kg

Power

Power supply: 380V, 50Hz, 3PHTotal power: 2.05KW
Main motor: 0.75KW
Can conveyor motor 1: 0.75KW
Can conveyor motor 2: 0.75KW
