Shrink Packing Machine Bottle Group Machine
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
- Port:
- Shanghai Port
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 15 packages per min |
| Supply Ability: | 10 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | CE ISO |
| HS Code: | 8422301090 |
| Transportation: | Ocean |
| Port: | Shanghai Port |
Product Description
Product Description
Sunswell have all beveage turkey line solutions, please feel free to contact us!
The wide range of liquid packaging plant machinery
Machinery for the most comprehensive scope of processes in connection with liquid packaging
Worldwide presence
10+ years of global market experience
Large number of customers worldwide
The various range of possible end products
The Sunswell product range covers types of machinery for packaging of liquid including water, tea, juice, carbonated soft drinks, energy drinks, alcoholic drinks, beer, edible oil, dairy products, etc.
Leadership in quality and technology from raw material to bottled liquid to selling products - Sunswell, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.

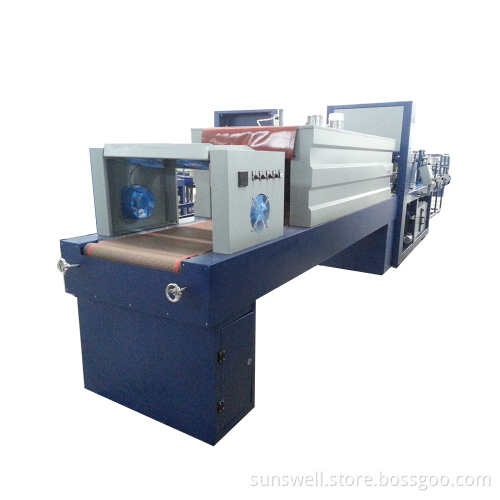

Big Capacity of Automatic Shrink Wrapping Machine/Shrinker Wrapper(CE)
I. Technical Parameters
Model: SSW-15
L Packing form: 2× 3, 3× 4, 3× 5, 4× 5, 4× 6 (According to bottles)
L Work power: 380V/50~60Hz/3PH
L Speed: 15 packs/min
L Sealing & cutting temperature: 190° C~230° C
L Shrink temperature: 160° C~260° C adjustable
L Material: PE, PVC, POF
L Roll of film width: ≤ 600mm
L Shrink film thickness: 0.08-0.09mm
L Roll of film diameter: ≤ 450mm
L Pneumatic pressure: 0.4-0.7MPa
L Compressed air consumption: 0.25NM3/min
L Work noise: ≤ 65dB
L Power: Heating oven 24kw/220v (temperature increasing 24kw, heat preservation 12kw); Mechanical part 5kw.
L Total weight: 3250kg
L Machine size: L× W× H=7800× 1000× 1500mm
L Conveyer belt max width: 600mm, Height 1120-1185mm (Adjustable)
The wide range of liquid packaging plant machinery
Machinery for the most comprehensive scope of processes in connection with liquid packaging
Worldwide presence
10+ years of global market experience
Large number of customers worldwide
The various range of possible end products
The Sunswell product range covers types of machinery for packaging of liquid including water, tea, juice, carbonated soft drinks, energy drinks, alcoholic drinks, beer, edible oil, dairy products, etc.
Leadership in quality and technology from raw material to bottled liquid to selling products - Sunswell, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
Big Capacity of Automatic Shrink Wrapping Machine/Shrinker Wrapper(CE)
I. Technical Parameters
Model: SSW-15
L Packing form: 2× 3, 3× 4, 3× 5, 4× 5, 4× 6 (According to bottles)
L Work power: 380V/50~60Hz/3PH
L Speed: 15 packs/min
L Sealing & cutting temperature: 190° C~230° C
L Shrink temperature: 160° C~260° C adjustable
L Material: PE, PVC, POF
L Roll of film width: ≤ 600mm
L Shrink film thickness: 0.08-0.09mm
L Roll of film diameter: ≤ 450mm
L Pneumatic pressure: 0.4-0.7MPa
L Compressed air consumption: 0.25NM3/min
L Work noise: ≤ 65dB
L Power: Heating oven 24kw/220v (temperature increasing 24kw, heat preservation 12kw); Mechanical part 5kw.
L Total weight: 3250kg
L Machine size: L× W× H=7800× 1000× 1500mm
L Conveyer belt max width: 600mm, Height 1120-1185mm (Adjustable)
| No. | Name | Brand | Region | Remarks |
| 1. | Touch Screen | Omron | Japan | 5.7' ' |
| 2. | PLC | Omron | Japan | |
| 3. | Pneumatic Components | Airtac | Taiwan, China | |
| 4. | Inverter | Teco | Taiwan, China | 2 sets |
| 5. | Motor | Shanghai | Shanghai, China | |
| 6. | Worm Gearbox | Taili | Zhejiang, China | |
| 7. | Teflo n Belt | Kaiyao | China | Imported material |
| 8. | Reducer | Halei | China | |
| 9. | Photoelectric Switch | Autonics | Korea | |
| 10. | Proximity Switch | Autonics | Korea |
