Heating PE Film Wrapper Bottle Shrink Wrapping Machine

$24000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	25 packages per min
Supply Ability:	10 sets per month
Payment Type:	T/T
Incoterm:	FOB
Certificate:	CE ISO
HS Code:	8422301090
Transportation:	Ocean
Port:	Shanghai Port

Product Description

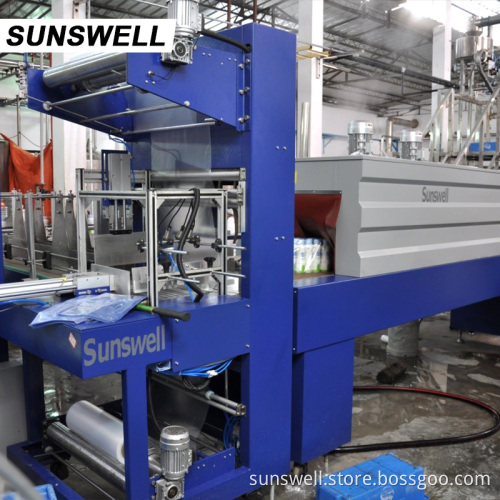

Automatic PE film Shrink Wrapper, packaging machine

Pe Film Shrink Wrapper

Shrink Packing Machine

Shrink Packing Machine Supplier

I. Technical Parameters

China Pe Film Shrink Wrapper
Film Shrink Wrapper
Automatic Overwrapping Machine

Model: SSW-25
L Packing form: 2× 3, 3× 4, 3× 5, 4× 5, 4× 6 (According to bottles)
L Work power: 380V/50~60Hz/3PH
L Speed: 25 packs/min
L Sealing & cutting temperature: 190° C~230° C
L Shrink temperature: 160° C~260° C adjustable
L Material: PE, PVC, POF
L Roll of film width: ≤ 600mm
L Shrink film thickness: 0.08-0.09mm
L Roll of film diameter: ≤ 450mm
L Pneumatic pressure: 0.4-0.7MPa
L Compressed air consumption: 0.25NM3/min
L Work noise: ≤ 65dB
L Power: Heating oven 24kw/220v (temperature increasing 24kw, heat preservation 12kw); Mechanical part 5kw.
L Total weight: 5150kg
L Machine size: L× W× H=8200× 1215× 2150mm
L Conveyer belt max width: 600mm, Height 1120-1185mm (Adjustable)

No.	Item	Spec.	Qty.	Brand	Country
1.	5.7" Touch Screen		1 unit	Siemens	Germany
2.	Servo Motor		2 units	Siemens	Germany
3.	Reducer		2 units	Shanghai	Shanghai
4.	Inverter		2 units	Taiwan	Taiwan
5.	Servo Control		2 units	Siemens	Germany
6.	Photoelectrical Sensor			P+F	Germany
7.	Pneumatic Components			SMC	Japan
8.	Electrical Components			Schneider	France
9.	Main Drive Bearing			SKFor equivalent brands	Sweden
10.	Working Bearing
11.	Linear Bearing			Igus	Germany
12.	Reducer		4units		Tsinghua Ziguang
13.	Inflatable Shaft		2pcs		Xihang
14.	Belt			HABSIT	Switzerland
15.	PLC			Siemens	Germany
16.	Belt			DuPont	USA
17.	Heating Tube		24 pcs
18.	Heating Fan 1.1kw		2 units
19.	High Insulation (H Level)		2 units
20.	Heat Mesh S/S 9.24M×500mm
