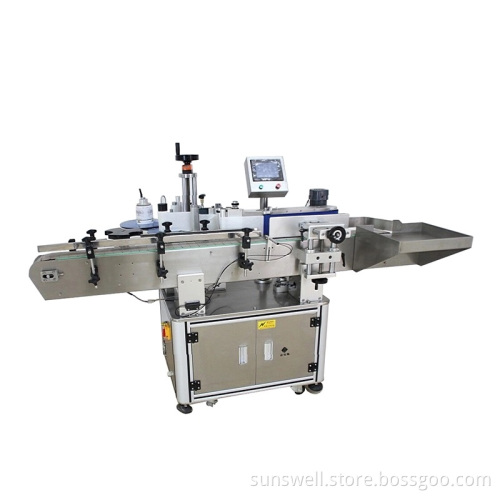

Automatic Self Adhesive Labeling Equipment

This labeling machine is suitable for ordinary round bottles or small conical bottles of various specifications. It can stick one or two labels. It can be widely used for labeling full round and semicircle labels.High label contact ratio, correction deviation.The mechanism is used for label belt cycling to avoid any deviation.Mark from three directions (x/y/z) and eight degrees of freedom of inclination, so that the high label contact rate without any adjustment dead Angle.The use of high-quality plastic label tape, label smooth, improve the quality of packaging.

Bottling Labeling Machine
Wet Glue Labeling Machine From China Manufacturer

Application

Sticker Labeling Machine Working principle

1、For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

2、Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.

3、Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.

4、Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh

wine.

Square Bottle Labeling Machine
Bottling Labeling Machine

Sticker Labeling Machine Technical parameters

◆ Suitable label length (mm): 20mm ~ 200mm

◆ Applicable Label width (backing paper width / mm): 20mm ~ 180mm

◆ Applicable Product size (for flat bottle): Length (transport direction): 20mm ~ 250mm

Width (transport width direction): 30mm ~ 90mm Height: 60mm ~ 280mm

◆ Applicable Products diameter (for round bottle): 45mm ~ 100mm

◆ Applicable standard roll diameter (mm): φ280mm

◆ Applicable standard roll diameter (mm): φ76mm

◆ Labeling accuracy (mm): ± 1mm

◆ The standard speed (m / min): Stepping: 5 ~ 19m/min Servo: 5 ~ 40m/min

◆ Labeling speed (pcs / min): Stepping: 30 ~ 160pcs/min Servo: 50 ~ 200pcs/min

◆ Conveyor speed (pcs / min): 18m/min

◆ Weight (kg): about 330kg

◆ Frequency (HZ): 50HZ

◆ Voltage (V): 220V

◆ Power (W): 1220W (traction stepper) 1720W (traction servo)

◆ Device dimensions (mm) (L × W × H): 3000 × 1450 × 1600mm

Main structure

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?

A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?

A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?

A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?

A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?

A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?

A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?

A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?

A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
