Hot Filling Juice Packaging Bottle Line

Hot filling juice filling machinery specialize for the juice filling , normally the filling temperature from 80-95 degree, it subject to customer

Bottle Filling Machine

Bottle volume :
0.2L-2L
(Big than 2L bottle volume,we have other machinery can meet your 2L -20L bottle volume requirement) .

 Beverage Filling Machine

The Water machinery combiblock is composed by :
RINSER-FILLER-CAPPER 3 in 1 monoblock

Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.

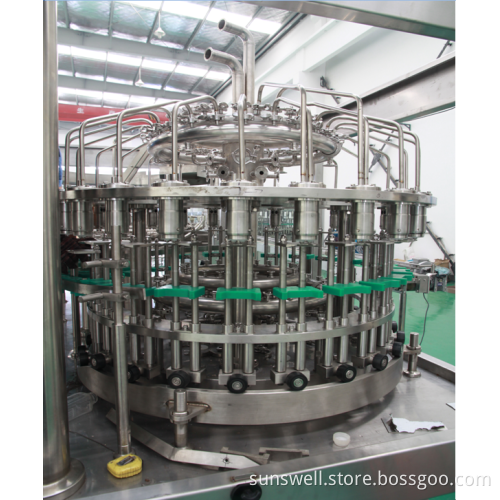

2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.

Main components configuration:
1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).

We can also provide turnkey/complete bottling water production line :
1. Juice preparation system ( sugar melting/dissolve , juice blending tanks, juice sterilize /pasteurizer , homogenizer,CIP)
2. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )

Juice beverage machinery Technical Model :

(Big than 2L bottle volume,we have other machinery can meet your 2L -20L bottle volume requirement) .
