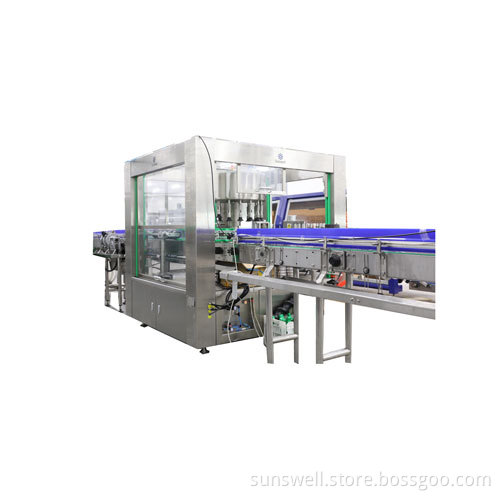

OPP Label attaching machine for edible oil bottle
-
$20000.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean |
| Port: | Shanghai |
Why chooose hot melt glue labeling machine ?
Bottling Labeling Machine
It's never been more important to stand out from the crowd in today's competitive beverage market. As your products' main communicator to consumers, labels are more than an identifier - they allow you to differentiate your products and give consumers the information they need and increasingly expect.
When it comes to labelling a variety of beverage types and bottle formats, more than ever before, flexibility has become a valuable benefit to beverage producers. The top priorities today are faster product and format changeovers, simple operations and optimised processes that use the same line for different label types.
Easy to use and flexible, they also incorporate a range of technologies suitable for many types of containers and products: from beverages to cosmetics to detergents.
Character of this machine
1). Adopt wheel labeling way;
2). Label transmit via label wheel, run along the guide rail and operate the labeling work;
3). When the label through the appointed wheel, the sensor will automatically detect I-Mark;
4).Once confirms the electronic eye position, the demodulator will automatically adjustment the speed of wheel, and then appoints the label cutting position accurately.
5).The label through the wheels and then enter into the cutting part to carry out the label cutting work, the label cut will be send to the vacuum-grip cylinder.
6). The containers which is transmitted by conveyor belt will be arranged properly via star wheel, then, the label which has been painted with glue will proceed the first labeling in the roller area, last, rely on the synchronous belt to proceed the last labeling operation.
Wet Glue Labeling Machine
Bottling And Labeling Machines
Technical Parameters:
1. Labeling speed: 1000-30000 bottles/hours(500ml)
2. Bottle type: cylindrical bottles
3. Bottle Material: PET, glass, metal.
4. Bottle height: 25-360(mm) (according to the specifications)
5. Label Height: 15-150(mm)
6. Bottle-necks range: φ40-φ128mm (according to the specifications)
7. Label Material: OPP, BOPP, composite membrane, paper (the whole volume of label)
8. Paper Tube diameter: 6 inches (152 mm).
9. Compressed Air: 8 (Kg/cm2) (The clients shall independently equip with the air compressors with the power of over 3 HP)
10.Consumption power: 6Kw
11. Voltage: AC 3φ, 380V/60HZ.
12. Mechanical dimensions: 2600L*1150W*1800H(mm)
13. Weight: 1500Kg
Sunswell has more than 15 years in this business. please inform us to quote for you freely!
