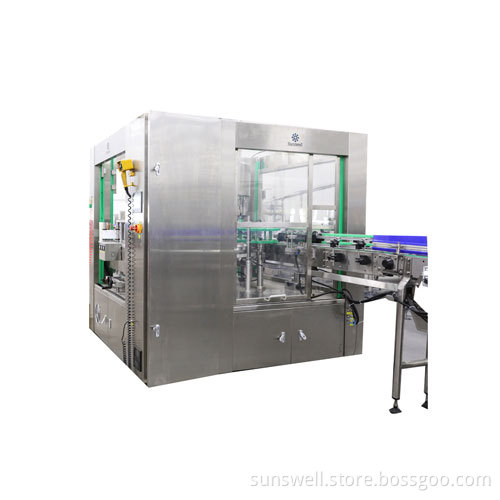

Full-auto BOPP labeler rotary type

BOPP Labels are the cheapest during all the labels like PVC Shrink label, self-adhesive label, but BOPP labeling machine is the most expensive type. Sunswell has more than 15 years in this business, we have low-speed linear type( less than 10000BPH), High-speed rotary type ( from 10000BPH to 30,000BPH)

Labeling Machine

Character of this machine

1). Adopt wheel labeling way;

2). Label transmit via label wheel, run along the guide rail and operate the labeling work;
3). When the label through the appointed wheel, the sensor will automatically detect I-Mark;
4).Once confirms the electronic eye position, the demodulator will automatically adjustment the speed of wheel, and then appoints the label cutting position accurately.
5).The label through the wheels and then enter into the cutting part to carry out the label cutting work, the label cut will be send to the vacuum-grip cylinder.
6). The containers which is transmitted by conveyor belt will be arranged properly via star wheel, then, the label which has been painted with glue will proceed the first labeling in the roller area, last, rely on the synchronous belt to proceed the last labeling operation.

Technical Parameters:

1. Labeling speed: 1000-30000 bottles/hours(500ml)

2. Bottle type: cylindrical bottles

3. Bottle Material: PET, glass, metal.

4. Bottle height: 25-360(mm) (according to the specifications)

5. Label Height: 15-150(mm)

6. Bottle-necks range: φ40-φ128mm (according to the specifications)

7. Label Material: OPP, BOPP, composite membrane, paper (the whole volume of label)

8. Paper Tube diameter: 6 inches (152 mm).

9. Compressed Air: 8 (Kg/cm2) (The clients shall independently equip with the air compressors with the power of over 3 HP)

10.Consumption power: 6Kw

11. Voltage: AC 3φ, 380V/60HZ.

12. Mechanical dimensions: 2600L*1150W*1800H(mm)

13. Weight: 1500Kg

Offer Square Bottle Labeling Machine
Bottling Labeling Machine

Sunswell has more than 15 years in this business. please inform us to quote for you freely!
