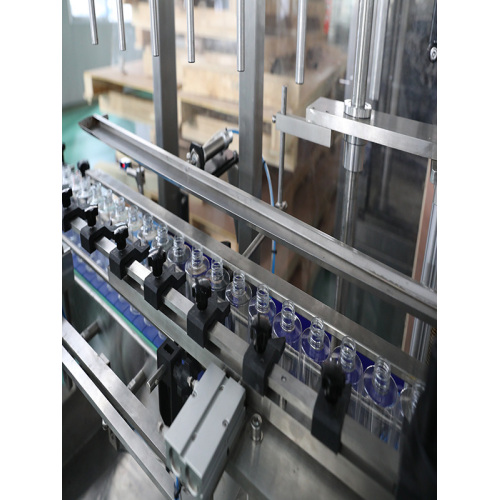

Liquid Shampoo Disinfectant Soap Filling Machine

$4000.00

≥1 Bag/Bags

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Transportation:: Ocean

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	4000BPH 500ml
Supply Ability:	20 sets per month
Payment Type:	L/C
Incoterm:	FOB
Certificate:	CE ISO
HS Code:	8422302100
Transportation:	Ocean
Port:	Shanghai Port

Product Description

Technical Parameter

Production Capacity	4000BPH (500ml)
Applicable Bottle	Length 80-220mm, Height 60-300mm
Accuracy	±0.2%
Air Pressure	0.6-0.8Mpa
Voltage	220V, 380v, customized
Power	1.5kw
Dimension	2400×1300×2300
Weight	1300kg

Features

1.
PLC programming control, servo motor drives a stable double-screw transmission mechanism to ensure accurancy and stability when the piston cylinder is pushed. It can achieve fast and slow filling;

Adopt 316 integral casting filling head, with high integrity and long service life;

The conveyor belts are equipped with coordinated photoelectric to intelligentlydetect the bottle-in and bottle-out. In case of bad conditions, they can automatically stop, reduce manual intervention and intelligent;

Piston seals with PTFE carburizing technology, which improve wear resistance, longer service life, and reduce maintenance costs;

Hoppers, valves, piston cylinders, filling heads all adopt live connection devices, which is convenient for replacement of sealing rings and disassembly for cleaning and disinfection;

The components that need to be adjusted are all connected by quick connection. It is very convenient to replace the specification and adjust them;

Blowing Filling Capping Combi Block
Liquid Filling Machine

The whole machine can be used for bottles of different specifications, easy to adjust, and can be complete in a short time.

Adopt imported photoelectric detection and induction, accurate positioning, filling with bottles, no filling without bottles, automatic counting function.

NO.	Item	Brand
1	Touch Screen	Weinview, Taiwan
2	PLC	Mitsubishi, Japan
3	Solenoid Valve	AirTAC, Taiwan
4	Frequency Converter	Schneider, France
5	Breaker	Schneider, France
6	Servo Motor	Panasonic, Japan
7	Switch	Schneider, France

Filling And Capping Machine
Liquid Filling Machine
