Film Wrapping Sealing Packing Machine for Carton Box

$20000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100
Supply Ability:	100
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE SGS ISO
HS Code:	8422400000
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

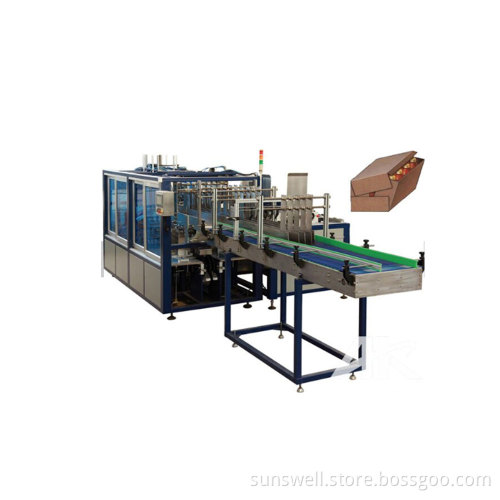

Carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. Machine can do 12 carton forming and tapping in every min. very efficiency and convenient. Carton board can be loaded without stopping the machine. Packing line will not stop during the continuous packing flow. Carton packing size can be adjust manually. Easy to operate and maintain.

Packaging Machine

Carton wrapping Machine

China Pe Film Shrink Wrapper

Main parameter

Product capacity: 15carton per minute
Film Shrink Wrapper
Rated power: 15KW

Used power supply: Three phase, 380V, 50Hz

Controlling power supply: 24V DV

Compressor air: 1500L per minute, 0.6-0.8Mpa

Hot melting glue solidify time: 1.5-2S

Machine weight: 4000kg

Overall size: L6285*W2582*H2115MM

Bottle entry conveyor size: L3000*W620*1200MM

Package product overall size: Length 350-450, Width 230-330mm, Height: 85-320mm

Package bottle diameter: D55-108MM

Cardboard requirement: Accord with international GB/T6544-2008
Pe Film Shrink Wrapper

Facility basic collocation

Collocation name	Brand	Collocation name	Brand
Main drive servo	Schneider	PLC	Siemens
Photoelectric sensor	AUTONICS	Pneumatic component	AIRTAC
Frequency transducer	TECO (TAIWAN)	Glue machine	Robatech Switzerland
Touch screen	Siemens	Servo controller	Schneider
Motor	Shanghai	Low pressure controlling	Schneider
