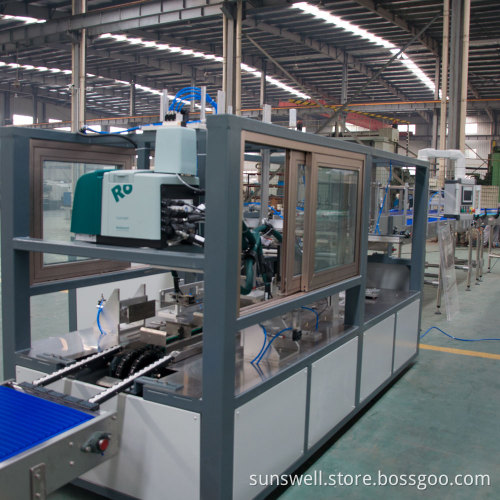

Bottle Drop Packing Machine Case Packing Machine

Bottle Drop Packing Machine Case Packing Machine

$2000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100
Supply Ability:	100
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE SGS ISO
HS Code:	8422400000
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

Product Application

Structure: the upper part of the feed conveyor, the product entire column grouping part, the lower part of the carton conveying, lifting mechanism, drop, pneumatic part and electric control part, export products tank transport parts.
How it works: According to customer requirements for product packaging, the product feed for accurate whole column grouping, while underlying pre-sync to the product carton boxes preset position, and then by the lifting mechanism rear jacking good product grouping randomly fall into cartons, lifting mechanism automatically drops to a horizontal position and the outlet conveyor, cartons output by the transport section; each part of the linkage is adjusted by the electric air control to simultaneously ensure that each group of products can be accurate and effective automatic packing and output.

Shrink Packing Machine

Application:Fields of food, beverage, pharmaceutical, cosmetic, chemical and other. Common to all types of PET bottles, cans, Pak packaging.

Automatic Overwrapping Machine

Packaging Machine

Film Shrink Wrapper

SPECIFICATIONS FOR CARTON BOX PACKING MACHINE
Total Power	AC380V 50Hz, 10KW	External Gas Source	*4~6Kg.f/cm2**
Active Servo Motor	380V 3KW	Upper-lower servo motor	380V 2KW
Paperboard feed motor	380V 0.75KW	Sub-bottle belt motor	380V 0.75KW
Infeed conveyor motor	380V 1.5KW	Machine Size	6.7mX3mX2m(custom)
Packing Specification	3x4 or 4X6 etc(custom)	Adaptation Bottles	Tin/Can/PET&Glass bottle
Bottle Diameter	φ60-98 (custom)	Total Weight	3500Kg
Using Adhesive	Hot melt adhesive	Using Paperboard	Strictly according to Tin

Pe Film Shrink Wrapper

Carton wrapping Machine

Voltage: 380V(± 10%max) 50Hz 3PH+PE.

For non-380V voltages, can provide an autotransfo.
Control voltage: 24V DC, Schneider low voltage control system
According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is IP65
Insulating refractory cable (paint color according to the DESINA standard)
Panel button Ø30mm: Schneider
Proximity switch: Autonics South Korea
With the joint of the photoelectric tube IP67 diameter18 D
Relay connector conforming to Din50-022-35 standard
Rapid stand joints conforms to the Din50-022-35 standard
Contactor relay with the French Schneider TE/ABB
frequency converter is Taiwan Teco
main controller: Germany Siemens
Asynchronous motor: Domestic
Other electric driving device in accordance with the IEC529 standard is not less than IP54
Gear motor; China
Bearing: TR
Chain: polymer plastics
Electronic valve in accordance with ISO 505599/1/0 standard
Cylinder and its accessories: AIRTAC or SMC
The production line to set multiple fault protection and alarm and fault alarm device. All the fault alarm details are on the
touch screen to highlight, prompted the need to solve the content and the main measures. The main action mechanism is provided with an electronic detection, automatic fault correction system is provided with a mechanical motion system, also can use manual reset button, the system automatically detecting and correcting.
