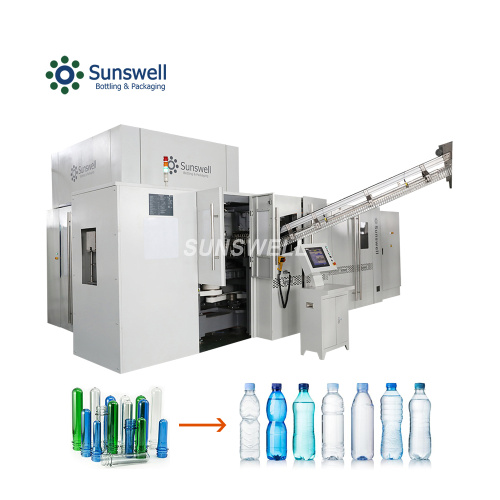

High Speed rotary pet bottle blow molding machine
-
$15000.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Shanghai, Ningbo, Lianyungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Productivity: | 100sets/year |
| Supply Ability: | 100sets/year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,CIP,CPT,FCA |
| Certificate: | CE ISO |
| Transportation: | Ocean |
| Port: | Shanghai,Ningbo,Lianyungang |
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic rotary pet Bottle Blowing Machine is successfully developed and researched by our company by absorbing the most advanced bottle producing technology in the world. It’s mainly made of hopper, elevating system, lining device, ion air blow dust, oven and mainframe, electrical controlling system and pneumatic controlling system.It can mainly blow, water, juice, carbonated pet bottles. We also manufacture Blowing Filling Capping Combi Block.
PET preform-Automatic preform loader-Ion air to -blow the perform dust-Oven heating preform-Preform transfer arm-Blower molds-sealing-stretching and blowing -Bottle transfer arm
It can mainly blow, water, juice, carbonated pet bottles. This is Liquid Filling Machine.
Main advantages:
4: top branded supplier
Main configuration
Main motor: SEW/ABB/NORD/WEIG
PLC program controller: SIEMENS/SCHENEIDER/Mitsubishi
Inverter: SIEMENS/SCHENEIDER/Mitsubishi
Photoelectrical controller: Banner
Proximity switch: Turck
Other electrical components: SIEMENS/SCHENEIDER
Pneumatic component: Festo/Airtac
Bellowed are the parameter of this 6 cavity smallest rotary Bottle Blowing Machine
|
PRODUCTION DATA
|
unit
|
PMRB-6B
|
|
Mold cavities
|
N
|
6
|
|
Max. body diameter
|
mm
|
105
|
|
Max. Height
|
mm
|
335
|
|
M. Neck diameter
|
mm
|
36
|
|
Max. preform Height
|
mm
|
145
|
|
Max. capacity
|
L
|
2
|
|
Nominal output for 0.5 L , bottle (*)
|
pcs/h
|
12,000
|
|
Rate of finished product(*)
|
%
|
≥99.8
|
|
DIMENSIONS
|
|
|
|
Main frame ( Length) * (Width)* (Height)
|
mm
|
4424×2286×3050
|
|
Weight
|
kg
|
8000
|
|
Oven ( Length) * (Width)* (Height)
|
mm
|
4700×1660×2050
|
|
Weight
|
kg
|
3000
|
|
Elevator (Length)*(Width)*(Height)
|
mm
|
6480*4900*3840
|
|
Weight
|
kg
|
1200
|
|
ELECTRICAL FEEDING
|
|
|
|
Voltage
|
V
|
380
|
|
Frequency
|
Hz
|
50
|
|
Total power installed
|
kW
|
180
|
|
#Voltage permitted
|
|
+/-5%
|
|
#Frequency permitted
|
|
+/-1%
|
|
Distribution
|
|
3PH + N + PE
|
|
COOLING SYSTEM/ HEATING SYSTEM
|
|
|
|
BASE MOULD
|
|
|
|
Water inlet temperature (**)
|
℃
|
8-10
|
|
Water inlet pressure (**)
|
bar
|
4-6
|
|
BODY MOULD
|
|
|
|
water inlet temperature
|
℃
|
9-15
|
|
water inlet pressure
|
bar
|
4-6
|
|
BLOW AIR
|
|
|
|
Nominal pressure
|
bar
|
35
|
|
Air rate (**)
|
m3/min
|
8
|
|
Filtering grade(filter)
|
micron
|
0.01
|
|
#Humidity
|
|
dehumidified
|
|
#Oil
|
|
Free
|
|
HEATING
|
|
|
|
Heating groups * pcs
|
n
|
10*7
|
|
#ENVIRONMENT
|
|
|
|
Environment temperature (**)
|
℃
|
0 -40
|
|
Environment humidity ( without condensate)
|
%
|
5 -60
|
|
Max. altitude（over sea）
|
m
|
3000
|
|
#CONNECTIONS
|
|
|
|
Connection service air
|
Inch.
|
1
|
|
Connection blow air
|
Inch.
|
2
|
|
Connection water and oil
|
Inch.
|
2
|
Pet beverage bottle rotary Blow Molder blow molding machine list
|
Model
|
Product
|
Capacity
|
|
RBM 6
|
PET beverage bottle 500ml
|
12000bph
|
|
RBM 8
|
PET beverage bottle 500ml
|
16000bph
|
|
RBM 10
|
PET beverage bottle 500ml
|
20000bph
|
|
RBM 12
|
PET beverage bottle 500ml
|
24000bph
|
|
RBM 14
|
PET beverage bottle 500ml
|
28000bph
|
|
RBM 16
|
PET beverage bottle 500ml
|
32000bph
|
|
RBM 18
|
PET beverage bottle 500ml
|
36000bph
|
1. Rotary blow molding machine bird view
2. Rotary blower molding machine heat oven
3. Rotary blower molding machine mold station
4. Rotary blower molding machine inlet and outlet gripper
