Tin can carbonated drink production filling machines line
-
$250000.00≥15000 Set/Sets
- Min. Order:
- 15000 Set/Sets
- Min. Order:
- 15000 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Supply Ability: | 50 sets per year |
| Payment Type: | L/C,T/T |
| Certificate: | CE, ISO |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shanghai |
Aluminum Can Soda Beverage Filling Production Line
The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as carbonated beverage ,fruit juice, oil & vinegar, wine, fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
This is Aluminum Can Filling Machine
Can Filler Aluminum Can Filling Seamer Product list
1 Carbonation Mixer
QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.China Water Bottling Machine Small
Main features
1) Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;
2) High efficiency deaeration
3) Simplified, user-friendly, operator interface
4) Automated “ no-dump” start-up capability
5) Complete product recipe management
6) Ingredient usage trending and totalling
7) Improved product yields and consistency
8) Reduced B.O.D. cost
9) Fast, favorable return-on-investment
Liquid Filling Machine
Process
Automatic Bottle Water Filling Line
Water De-aeration Water Carbonation Proportioning of water and syrup Cooling System
2 Depalletizer
|
Model |
XD200 |
|
Production capacity |
12000 cans/hour |
|
Applicable bottle |
cans |
|
Compressed air consumption |
0.01M3 /min , 6~8bar |
|
Operating voltage(AC) |
380V |
|
Control voltage(DC) |
24V |
|
Total power |
6.37KW |
|
Total weight |
5000kg |
3 Can Rinser
Description
It is used to clean empty can in canning production line. Empty cans will be sent to turning device first, which will be turned around then transferred into rinsing machine. Empty can will be running from top to bottom along the turning device. When empty cans enter into rinser, they will be cleaned by 80ºC hot water (provided by customer) to reach aseptic state of can. There is certain inclination angle in both sides of rinser, whose size could be adjusted properly when needed. Empty cans will be rolling in parallel way from top to end; the waste water will be discharged from outfall.
Technical parameters
|
Required capacity |
0-200 CPM (330ml) |
|
Diameter of Can |
53~66mm |
|
Height of Can |
70~175mm |
|
Dimensions |
6200×470×310mm (L×W×H) |
|
Machine weight |
500Kg |

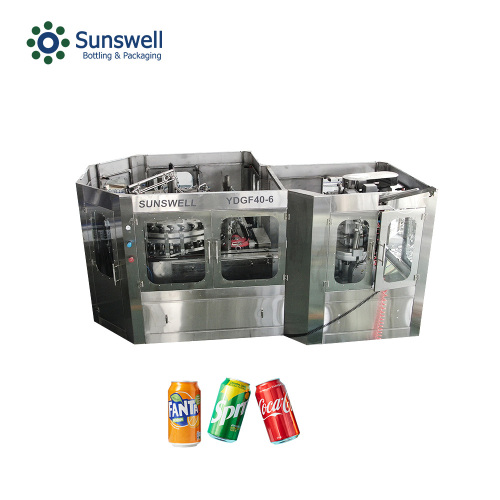

4 Can Filler/Seamer Monoblock
This is Filling And Capping Machine Line
5 X-ray Level Detector
Description
Filling level detector is developed to meet international advanced level liquid level detection requirements. Use of low-energy X-ray after the interaction with the tested substances, materials-ray intensity with the test material surface changes the position of principle, to control the detection of liquid filling material capacity. Because of its non-contact measurement, a fundamental solution to the conventional weighing method cannot measure the liquid filling material on the production line capacity problems. It is widely used in food, pharmaceutical, chemical and other filling (either bottled or canned) liquid-line automatic control of the pipeline material. For ensuring product quality, increase economic efficiency and social significance.
