Beverage Can Filling And Sealing Machine For Juice

Empty can depalletizer-----Washer-----Filler seamer-----Inverter------Date printer

Main components of the can filling line are rinsing, filling, seaming monoblock, tunnel sterilizing machine and conveying system. The key machine is the seamer, which synchronizes with filling machine. The liquid level is stable and the oxygen content is decreased. Through a few simple adjustments, it could handle different cans. The special structure sealing roller could be adjusted according to can's size. As the can is easy to get deformed, soft treatment is needed in the transferring process. The conveying system regulates the transferring speed according to the each machine's working condition to assure no can falling or crashing occurs.

This is Aluminum Can Filling Machine

Can Filler Aluminum Can Filling Seamer Product list

1 Carbonation Mixer

QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.China Water Bottling Machine Small

Main features

1)      Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;

2)     High efficiency deaeration

3)     Simplified, user-friendly, operator interface

4)     Automated “ no-dump” start-up capability

5)     Complete product recipe management

6)     Ingredient usage trending and totalling

7)     Improved product yields and consistency

8)     Reduced B.O.D. cost

9)     Fast, favorable return-on-investment

Liquid Filling Machine

Process

Automatic Bottle Water Filling Line

Water De-aeration   Water Carbonation   Proportioning of water and syrup   Cooling System

2 Depalletizer

3 Can Rinser

Description

It is used to clean empty can in canning production line. Empty cans will be sent to turning device first, which will be turned around then transferred into rinsing machine. Empty can will be running from top to bottom along the turning device. When empty cans enter into rinser, they will be cleaned by 80ºC hot water (provided by customer) to reach aseptic state of can. There is certain inclination angle in both sides of rinser, whose size could be adjusted properly when needed. Empty cans will be rolling in parallel way from top to end; the waste water will be discharged from outfall.

Technical parameters

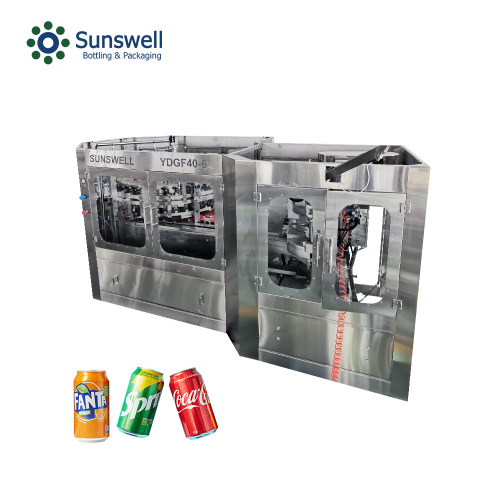

4 Can Filler/Seamer Monoblock

This is Filling And Capping Machine Line

5 X-ray Level Detector

Description

Filling level detector is developed to meet international advanced level liquid level detection requirements. Use of low-energy X-ray after the interaction with the tested substances, materials-ray intensity with the test material surface changes the position of principle, to control the detection of liquid filling material capacity. Because of its non-contact measurement, a fundamental solution to the conventional weighing method cannot measure the liquid filling material on the production line capacity problems. It is widely used in food, pharmaceutical, chemical and other filling (either bottled or canned) liquid-line automatic control of the pipeline material. For ensuring product quality, increase economic efficiency and social significance.
