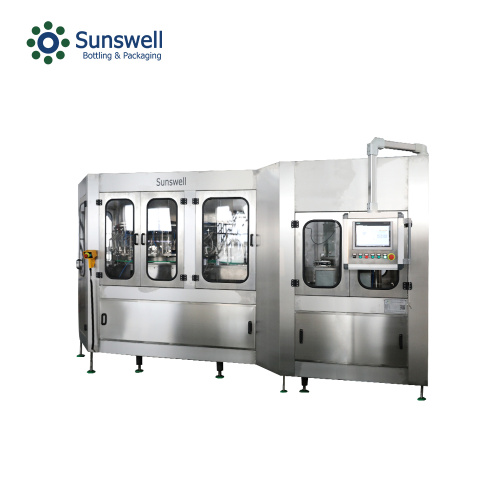

Aluminum Tin Can Filling Sealing Machine

The machine is advanced filling and capping equipment, it’s designed on the basis of absorbing domestic and foreign advanced technology. It is mainly used in filling and capping carbonated beverages like soft drinks, cola, sparkling wine, etc.The motor is driven by a three-legged belt to drive the main shaft and the lock pad to rotate, and the easy-pull can is rotated. It has such advantages as advanced construction, stable working, convenient operation, and repair & maintenance, transducer control as well as high production efficiency. It is the ideal equipment for mid-scale & small-scale beverage factory.

This is Aluminum Can Filling Machine

1 Carbonation Mixer

General Introduction

QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.China Water Bottling Machine Small

Main features

1)      Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;

2)     High efficiency deaeration

3)     Simplified, user-friendly, operator interface

4)     Automated “ no-dump” start-up capability

5)     Complete product recipe management

6)     Ingredient usage trending and totalling

7)     Improved product yields and consistency

8)     Reduced B.O.D. cost

9)     Fast, favorable return-on-investment

Liquid Filling Machine

Process

Automatic Bottle Water Filling Line

Water De-aeration   Water Carbonation   Proportioning of water and syrup   Cooling System

2 Depalletizer

3 Can Rinser

General description

It is used to clean empty can in canning production line. Empty cans will be sent to turning device first, which will be turned around then transferred into rinsing machine. Empty can will be running from top to bottom along the turning device. When empty cans enter into rinser, they will be cleaned by 80ºC hot water (provided by customer) to reach aseptic state of can. There is certain inclination angle in both sides of rinser, whose size could be adjusted properly when needed. Empty cans will be rolling in parallel way from top to end; the waste water will be discharged from outfall.

Technical parameters

4 Can Filler/Seamer Monoblock

This is Automatic Bottle Water Filling Line

Description

It is suitable for filling and seaming carbonated liquid such as cola, beer, functional beverage, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, seaming reliably, frequency conversion timing, less material loss. Beverage Filling Machine It is the preferred equipment for beverage plants.

Features

Automatic Bottle Water Filling Line Wholly sealed widow structure which is beautiful, concise, easy and highly operated;

Product tank design with precision polishing inside;

High precision and large flow rate filling valves to meet productive requirement;

Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;

Friendly and convenient operating panel with high expansibility.

Working Procedure

Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.

5 X-ray Level Detector

Description

 Filling level detector is developed to meet international advanced level liquid level detection requirements. Use of low-energy X-ray after the interaction with the tested substances, materials-ray intensity with the test material surface changes the position of principle, to control the detection of liquid filling material capacity. Because of its non-contact measurement, a fundamental solution to the conventional weighing method cannot measure the liquid filling material on the production line capacity problems. It is widely used in food, pharmaceutical, chemical and other filling (either bottled or canned) liquid-line automatic control of the pipeline material. For ensuring product quality, increase economic efficiency and social significance.
