customized CSD drinks carbonated juice filling machine
-
$250000.00≥15000 Set/Sets
- Min. Order:
- 15000 Set/Sets
- Min. Order:
- 15000 Set/Sets
- Transportation:
- Ocean
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Supply Ability: | 50 sets per year |
| Payment Type: | L/C,T/T |
| Certificate: | CE, ISO |
| Transportation: | Ocean |
| Port: | shanghai |
his combination machine is suitable for the filling and sealing of beer and beverage industry.This combination machine is filled with single room pressure filling valve, which can not be used in the filling process.The seal is a double winding edge spinning and frequency control control.Are characterized by their smooth filling, large flow, speed, filling quantity allowed, no tank filling, dripping, cylinder depth of the liquid level automatic control, material cylinder can be automatic cleaning disinfection,the characteristics of the production speed is adjustable, suitable for filling and sealing all kinds of cans.
Blowing Filling Capping Combi Block
Liquid Filling Machine
1 Carbonation Mixer
General Introduction
QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.
Beverage Filling Machine
China Water Bottling Machine Small
Automatic Bottle Water Filling Line
Main features
1) Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;
2) High efficiency deaeration
3) Simplified, user-friendly, operator interface
4) Automated “ no-dump” start-up capability
5) Complete product recipe management
6) Ingredient usage trending and totalling
7) Improved product yields and consistency
8) Reduced B.O.D. cost
9) Fast, favorable return-on-investment
Process
Water De-aeration Water Carbonation Proportioning of water and syrup Cooling System
2 Depalletizer
General Introduction
QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.
Main features
1) Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;
2) High efficiency deaeration
3) Simplified, user-friendly, operator interface
4) Automated “ no-dump” start-up capability
5) Complete product recipe management
6) Ingredient usage trending and totalling
7) Improved product yields and consistency
8) Reduced B.O.D. cost
9) Fast, favorable return-on-investment
Process
Water De-aeration Water Carbonation Proportioning of water and syrup Cooling System
2 Depalletizer
|
Model |
XD200 |
|
Production capacity |
12000 cans/hour |
|
Applicable bottle |
cans |
|
Compressed air consumption |
0.01M3 /min , 6~8bar |
|
Operating voltage(AC) |
380V |
|
Control voltage(DC) |
24V |
|
Total power |
6.37KW |
|
Total weight |
5000kg |
3 Can Rinser
General description
It is used to clean empty can in canning production line. Empty cans will be sent to turning device first, which will be turned around then transferred into rinsing machine. Empty can will be running from top to bottom along the turning device. When empty cans enter into rinser, they will be cleaned by 80ºC hot water (provided by customer) to reach aseptic state of can. There is certain inclination angle in both sides of rinser, whose size could be adjusted properly when needed. Empty cans will be rolling in parallel way from top to end; the waste water will be discharged from outfall.
Technical parameters
|
Required capacity |
0-200 CPM (330ml) |
|
Diameter of Can |
53~66mm |
|
Height of Can |
70~175mm |
|
Dimensions |
6200×470×310mm (L×W×H) |
|
Machine weight |
500Kg |

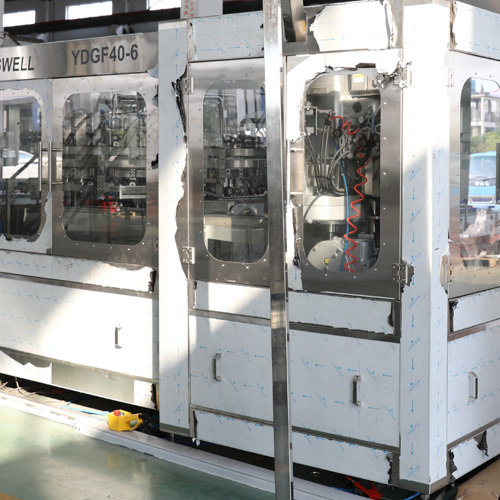

4 Can Filler/Seamer Monoblock
Description
It is suitable for filling and seaming carbonated liquid such as cola, beer, functional beverage, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, seaming reliably, frequency conversion timing, less material loss. It is the preferred equipment for beverage plants.
Features
Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
Product tank design with precision polishing inside;
High precision and large flow rate filling valves to meet productive requirement;
Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
Friendly and convenient operating panel with high expansibility.
Working Procedure
Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.
5 X-ray Level Detector
