3000BPH Carbonated Soft Drink Plant Bottling Machine

Beverage can filling machine
Application :energy drink,juice beverage,carbonated drink etc.
pop can filling and seaming machine for fruit juice(non carbonated) has such prominent features as high filling speed , consistent height from the liquid level in the can to the can mouth after filling , stable machine operation , good sealing quality , beautiful and decent appearance , convenient use and maintenance , etc .

Liquid Filling Machine,Bottle Filling Machine Manufacturer
Filling And Capping Machine

1 Carbonation Mixer

General Introduction

QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.

Main features

1)      Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;

2)     High efficiency deaeration

3)     Simplified, user-friendly, operator interface

4)     Automated “ no-dump” start-up capability

5)     Complete product recipe management

6)     Ingredient usage trending and totalling

7)     Improved product yields and consistency

8)     Reduced B.O.D. cost

9)     Fast, favorable return-on-investment

Liquid Filling Machine
Bottle Filling Machine

Process

Water De-aeration   Water Carbonation   Proportioning of water and syrup   Cooling System

2 Depalletizer

General Introduction

QHS series beverage mixer has the reasonable structure, high precision mix, plenty CO2 mix. Mainly applies to all carbonated beverages mixed processing, and can also be used for other beverages. It is the main equipment in complete equipments of carbonated beverage manufacturing.

Main features

1)      Advanced mass flow in-line blending and carbonation for reduced product & ingredient losses;

2)     High efficiency deaeration

3)     Simplified, user-friendly, operator interface

4)     Automated “ no-dump” start-up capability

5)     Complete product recipe management

6)     Ingredient usage trending and totalling

7)     Improved product yields and consistency

8)     Reduced B.O.D. cost

9)     Fast, favorable return-on-investment

Process

Water De-aeration   Water Carbonation   Proportioning of water and syrup   Cooling System

2 Depalletizer

3 Can Rinser

General description

It is used to clean empty can in canning production line. Empty cans will be sent to turning device first, which will be turned around then transferred into rinsing machine. Empty can will be running from top to bottom along the turning device. When empty cans enter into rinser, they will be cleaned by 80ºC hot water (provided by customer) to reach aseptic state of can. There is certain inclination angle in both sides of rinser, whose size could be adjusted properly when needed. Empty cans will be rolling in parallel way from top to end; the waste water will be discharged from outfall.

Technical parameters

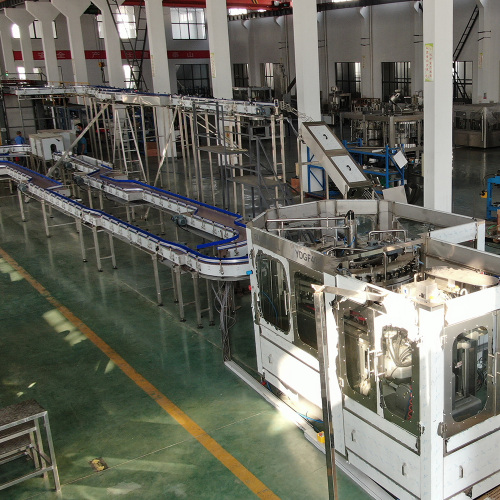

4 Can Filler/Seamer Monoblock

Description

It is suitable for filling and seaming carbonated liquid such as cola, beer, functional beverage, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, seaming reliably, frequency conversion timing, less material loss. It is the preferred equipment for beverage plants.

Features

­   Wholly sealed widow structure which is beautiful, concise, easy and highly operated;

­   Product tank design with precision polishing inside;

­   High precision and large flow rate filling valves to meet productive requirement;

­   Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;

­   Friendly and convenient operating panel with high expansibility.

Working Procedure

Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.

5 X-ray Level Detector
