LED Wall washer linear bar

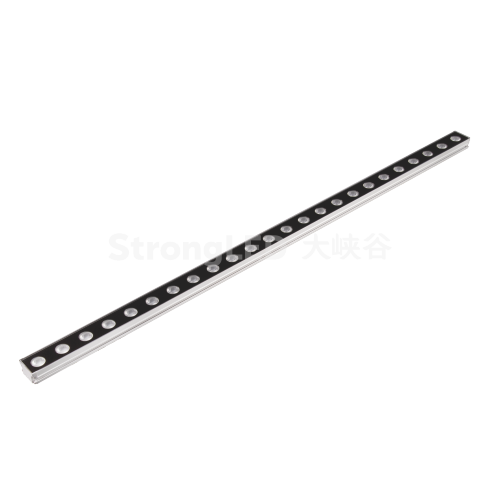

36W High Power RGBW LED Wall Washer LK2D-A

 Features

■ Elegant low profile high power LED linear luminaire for floodlighting, wall wash and wall graze applications to buildings, bridges, monuments.

■ Light projection distance over 10 meters with choice of Cree or Lumileds LEDs in a variety of colours and beam angles for selection.

■ Extruded aluminum profile of high efficient thermal dissipation design with clear tempered glass cover and anti-glare shield. Customizable housing color and length.

■ Various stainless steel mounting brackets with up to 180Ⰰ tilt angle adjustment for easy installation and light projection setup. Optional anti-glare shield.

■ Seamless line of light when connected in cascade without dark spaces at joints.

■ DC 24V input. DMX control. High brightness contrast level for smooth and consistent color change effect.

■ Preventive vent, waterproof connectors and rated IP66.

Wall Washer Light, LED Wall Washer, RGB Wall Washer, LED Wall Washer Graze Lights, Narrow Beam Angle Wall Washer, High Power Wall Washer

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS
■ Power Rating: 36W, Input Voltage:DC24V
■ CCT:RGBW, DMX 512
■ LEDs:24(RGBW) LEDs
■ Beam Angle:15°/20°/30°/45°/60°/20°*45°/10°*60°
■ Dimension: 1000*40*26mm(without bracket)
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum +clear tempered glass diffuser
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/2 out)
■ Rotary bracket with 180D /Low rotary bracket with 40D /High rotary bracket with 180D
■ Pixels:1
