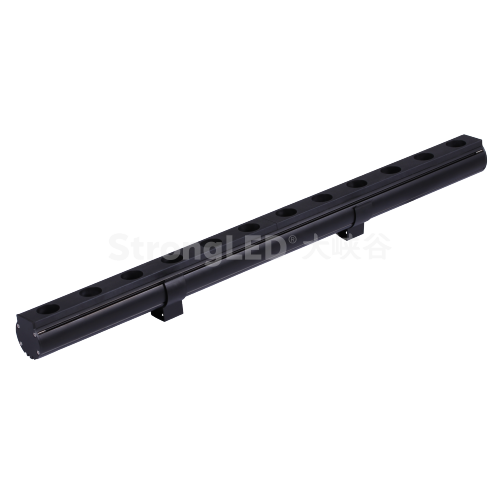

IP66 LED Wall Washer Outdoor Light AT1A

IP66 LED Wall Washer Outdoor Light AT1A

Wall Washer Light, LED Wall Washer, RGB Wall Washer, LED Wall Washer Graze Lights, Narrow Beam Angle Wall Washer, High Power Wall Washer

 Features

■ Elegant high power, high brightness LED linear luminaire for wall wash, wall graze and accent lighting.

■ High power Cree or Lumileds LED in whites, mono colors, RGB and choice of beam angles.

■ Deep seated light source with Cut-off angle: 46° cut-off angle: for a pleasing anti glare lighting effect.

■ Brightness level of 256. Contrast level of 1024.

■ DC24V input. DMX and constant current drive for consistent color and long service life.

■ Corrosion-resist extruded aluminum and nylon or aluminum face plate. Weather-sealed with IP66 rated.

■ Available with fixed and adjustable tilt mounting brackets. Customizable housing color and lengths.

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS
■ Power Rating: 28.8W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:24(1W 350mA) LEDs
■ Beam Angle:8°/15°/20°/30°/45°/60°/20°*40°/10°*60°/15°*45°
■ Dimension: 1000*35*36mm
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Rotary bracket with 120D or Fixed bracket
■ Pixels:1
