Sub Controller DMX S8

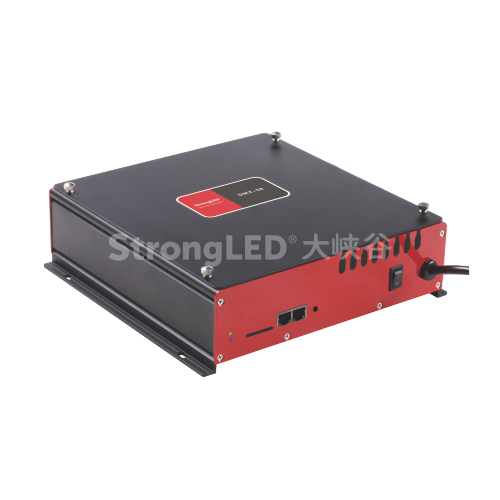

Sub Controller DMX-S8

Sub Controller, DMX 512 Sub Controller, Auto-addressing Sub Controller, LED Lighting System Sub Controller

 Features

■ DMX-S8 receives the graphics data sent by the RTP-S1500 master controller, takes out the  corresponding part of the pixel frame according to the address set by itself, and sends it out from the control port at a specific time sequence after  format adjustment to control the lighting and color change of LED.

■ Two RJ45 network interfaces are set up;

■ When CAT5 signal lines are connected, the transmission distance between the master controller as well as the sub-controller to the sub-controller is more than 100 meters;

■ The network switch can be connected to extend the transmission distance;

■ Automatically identify its position in the system;

■ It is set with 8 DMX 512 control ports with automatic addressing function, each port can control 170 pixels for RGB light fixture, 512 pixels for mono color.

■ Sub Controller,DMX 512 Sub Controller,Auto-addressing Sub Controller,LED Lighting System Sub Controller

 Parameters

■ Sub Controller

■ 8 DMX 512 output ports with automatic addressing function, each output port can control 128 pixels of RGBW lights or 512 pixels of single color lights;

■ Power watt: 15W

■ Power input: AC110C~260V/50Hz

■ Dimension: 255*244*80.5mm
