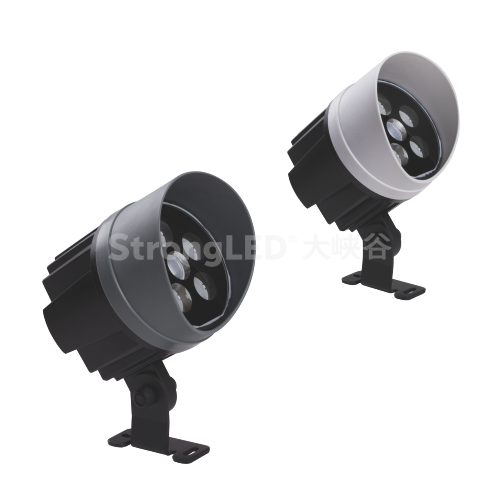

DC24V LED Spot Light die-cast aluminum AP7D

15.7W Mono Color Anti Surge LED Spot Lights

LED Spot Light, Anti Surge LED Spot Lights, High Power Spot Light, RGB Spot Light, IP66 Spot Light

 Features

■ Elegant medium-sized round high power outdoor LED floodlight for architectural, bridges, monuments and landscape lightings.
■ Cree or Lumileds LEDs in 14.4W or 16.2W variance.
■ Available in wide ranges of white, mono color, RGB and beam angles.
■ DMX control. Smooth and stable colour change effect with high brightness contrast levels.
■ Powder coated die-cast aluminum body with high efficient heat dissipation design and clear glass diffuser.
■ Easy and stable installation with adjustable (up to 150°) tilt angles and base mounting.
■ DC24V input voltage. Rated IP66.

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS
■ Power Rating: 14.4W, Input Voltage:DC24V
■ CCT:RGB, DMX512
■ LEDs:6(3W 700mA) LEDs
■ Beam Angle:8°/15°/20°/30°/45°/60°/20°*40°/10°*60°/15°*45°
■ Dimension: φ100*85mm(without cover) φ100*122mm(with cover)
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Rotary bracket with 150D
■ Pixels:1
