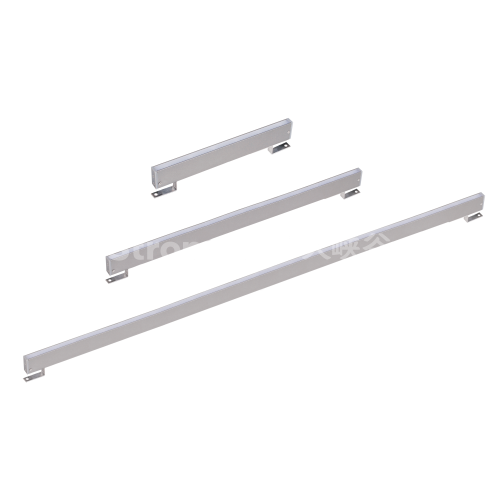

1000mm Addressable RGB DMX Linear Light-HV4

1000mm Addressable RGB DMX Linear Light-HV4

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features

■ Ultra slim profile high brightness outdoor LED pixel linear luminaire that can seamlessly integrate into building facades and architectural features.
■ With ultra slim 8mm width fìxture width and 33mm LED pitch,it can be configured as a scalable large indoor and outdoor media display with high natural light transparency (energy saving) for building facades and commercial buildings.
■ Cree,Osram or Lumileds LED.Choice of clear,frosted and opal diffuser.
■ Stable and flicker-free display with refresh rate of >60Hz.
■ High brightness contrast level for smooth and consistent color change effect.
■ High precision extruded aluminum for efficient heat dissipation.High wind resistance construction.Weatherproof sealed. IP65.
■ Customized housing colour and lengths available Other mounting options available.
■ 24V DC input.DMX with automatic addressing function.

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:48 LEDs
■ Beam Angle:≥120°
■ Dimension: 1000*11*28mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Fixed bracket
■ Pixels:8
