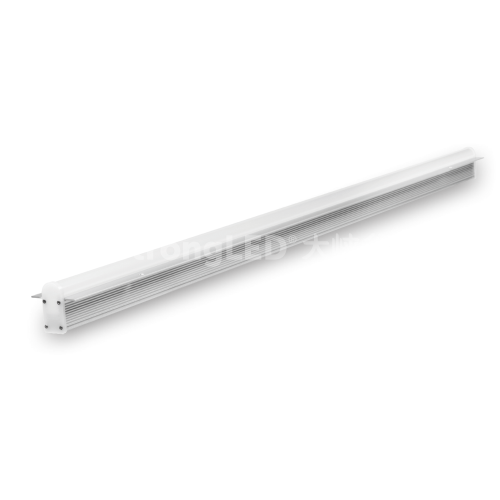

1000mm Addressable RGB DMX Linear Light-CV8B
- Payment Type:
- T/T
- Incoterm:
- EXW
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, OTHERS
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000pcs/day |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | ISO9001 ISO14001 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,OTHERS |
1000mm Addressable RGB DMX Linear Light-CV8B
Features
Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light
■ Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building.
■ Choice of Cree,Orsam,Lumileds in range of whites,mono colour,RGB and RGBW viewing angle at ≥ 120°.
■ High corrosion resist anodized aluminum profile and PC cover.
■ Completely weather-sealed fixture.IP65.
■ Easy and fast installation with fixed or adjustable stainless steel brackets and high wind resistance level.
■ Seamless line of light with no dark spaces when fixtures are connected in cascade.
■ DC24V input.DMX control with auto-addressing features.
■ Built-in PWM high brightness contrast level control for smooth and consistent color change effect.
Parameters
■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W@6500K, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:48 LEDs
■ Beam Angle:≥120°
■ Dimension: 1000*50*48mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum+PC(transparent / diffuser)
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/2 out)
■ Pixels:16
