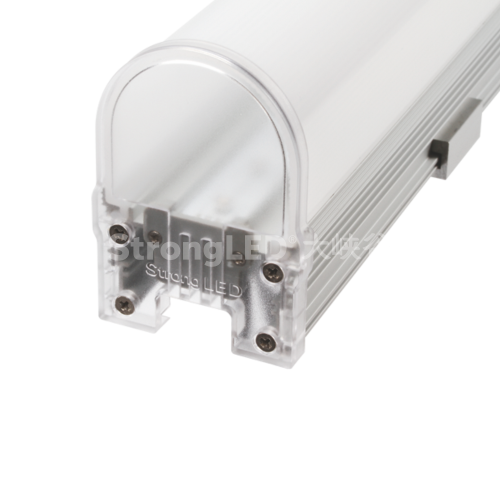

1000mm Addressable RGB DMX Linear Light-DB5
Features
■ Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building façade and commercial building.
■ Choice of Cree, Lumiled and Osram LEDs in whites, mono colour aRGB. Wide view angle ≥160°.
■ High corrosion resist anodized aluminum profile and PC cover.
■ Complete weather-sealed fixture, IP65.
■ Easy and fast installation with fixed or adjustable stainless steel brackets and high wind resistance level.
■ Seamless line of light with no dark spaces when fixtures are connected in cascade.
■ DC24V input. DMX control with auto-addressing features.
Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light
Parameters
■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:48 LEDs
■ Beam Angle:≥160°
■ Dimension: 1000*54*77.5mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum+PC(transparent / diffuser)
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/2 out)
■ Fixed bracket
■ Pixels:16
