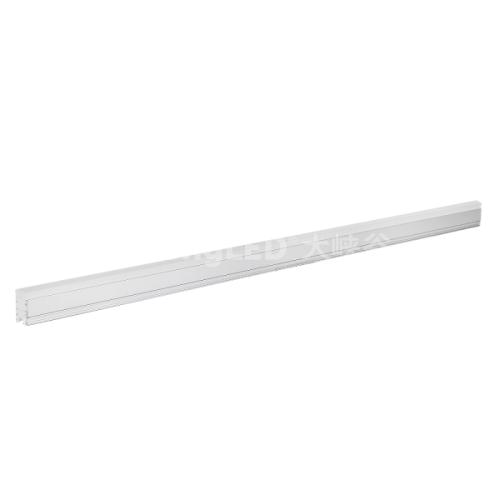

DMX RGB+W Surface Mounted LED Linear Lights CX3C

DMX RGB+W Surface Mounted LED Linear Lights CX3C

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features

■ Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building.

■ Choice of Cree, Orsam, Lumileds in range of whites, mono colour, RGB and RGB+W.

■ High corrosion resist anodized aluminum profile and PMMA cover.

■ Completely weather-sealed fixture, IP66.

■ Easy and fast installation with fixed or adjustable stainless steel brackets and high wind resistance level.

■ Seamless line of light with no dark spaces when fixtures are connected in cascade.

■ DC24V input. DMX control with auto-addressing features.

■ Easy and neat installation with adjustable mounting brackets and cable stowed compartment.

■ It can connect 10 pcs (1m/pc) per power circuit which can reduce the construction cost.

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:RGB+W, DMX 512
■ LEDs:48(24RGB+24W) LEDs
■ Beam Angle:120°
■ Dimension: 1000*23.5*43mm(without bracket)
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Rotary bracket with 180D /Clip spring bracket /Low clip spring bracket /High clip spring bracket
■ Pixels:4+4/8+8
