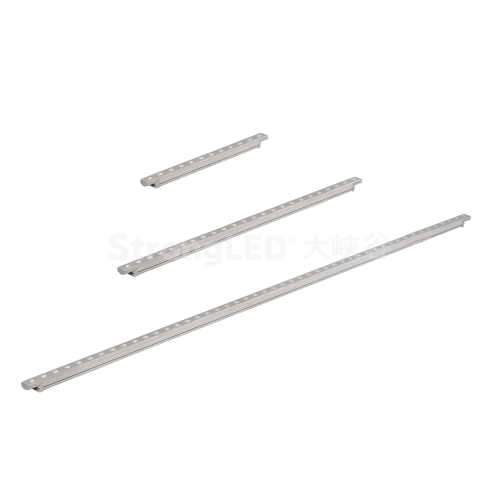

IP65 DMX512 RGB Linear Lights CV3B

IP65 DMX512 RGB Linear Lights CV3B

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features

■ Elegant ultra-slim profile high brightness LED pixel linear light that integrated easily into architectural features for outdoor applications or formed into scalable large LED video display with high light transparency for building facades and commercial building.

■ Choice of Cree, Orsam, Lumileds in range of whites, mono colour, RGB and RGBW viewing angle at ≥110°.

■ High corrosion resist anodized aluminum profile and perforated face cover over clear PMMA or PC lens cap.

■ Complete weather-sealed fixture, IP65.

■ Easy and fast installation with fixed or adjustable stainless steel brackets.

■ Seamless line of light with no dark spaces when fixtures are connected in cascade.

■ DC 24V input. DMX control with auto-addressing features.

■ High brightness contrast level control for smooth and consistent color change effect.

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:48 LEDs
■ Beam Angle:≥110°
■ Dimension: 1000*15.4*19mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Rotary bracket with 120D/ Low clip spring bracket/ clip spring bracket/ High clip spring bracket
■ Pixels:16
