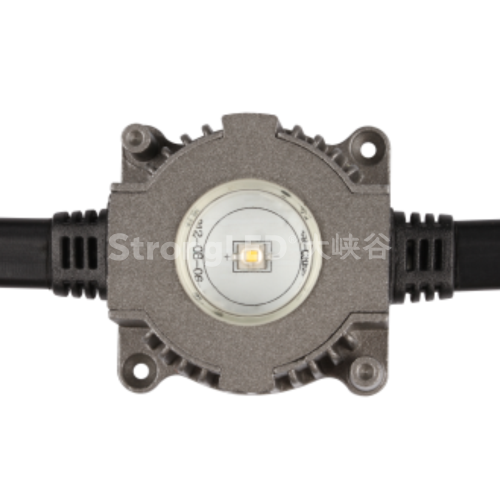

DC24V RGB DMX512 LED Dot Light AM1A

DC24V RGB DMX512 LED Dot Light AM1A

Led Dot Light, Landscape Lighting Dot Light, Low Power LED Dot Light, Addressable LED Dot Light, Outdoor Lighting Dot Light

 Features

■ Attractive small circular high brightness LED dot light, suitable for signage, advertising light box and graphic display.
■ Cree high power led in whites and mono color. Choice of beam angles.
■ Available in 6 dot lights and 150mm dot pitch in a strand with a constant current driver.
■ Die-cast aluminum alloy housing with good heat dissipation, clear or frosted diffuser and fully potted in silicon for water ingress protection up to IP65.
■ High brightness contrast level for smooth and consistent color change effect.
■ Customizable dot pitch, housing color and lead cable length.

Led Dot Light, Landscape Lighting Dot Light, Low Power LED Dot Light, Addressable LED Dot Light, Outdoor Lighting Dot Light

 Parameters

■ LED source:CREE
■ Power Rating: 1.2W, Input Voltage:DC20-30V,350mA
■ CCT:4000K, PWM
■ LEDs:1 LEDs (1W350mA)
■ Beam Angle:15°/30°/45°/100°/20°*35°
■ Dimension:38*38*16.8mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Pixels:1
